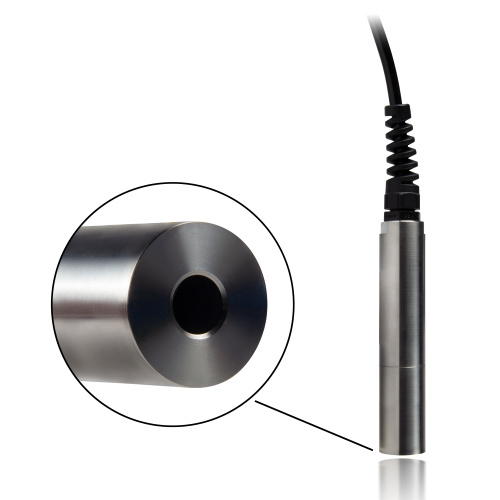

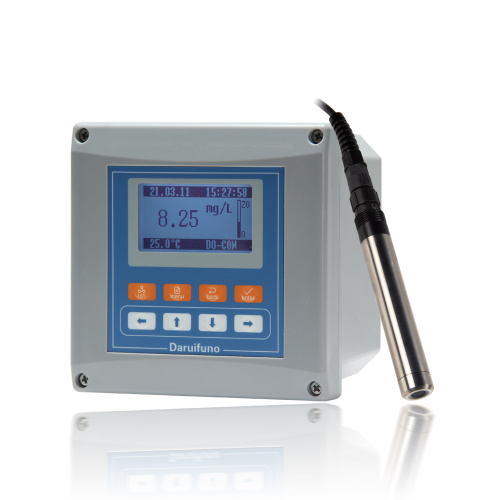

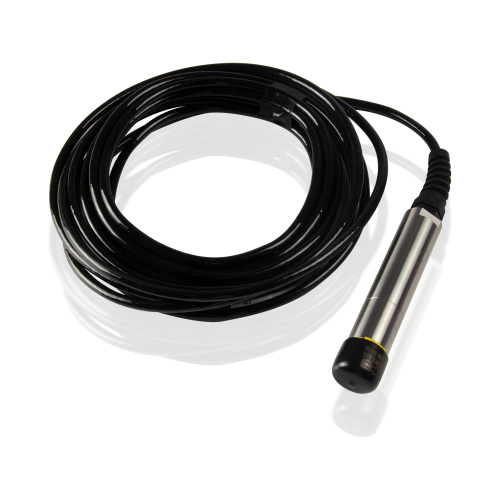

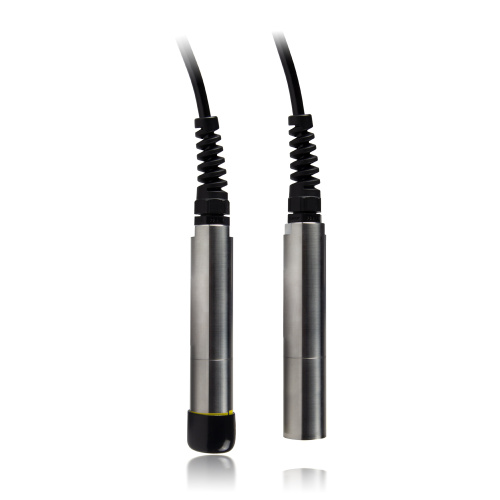

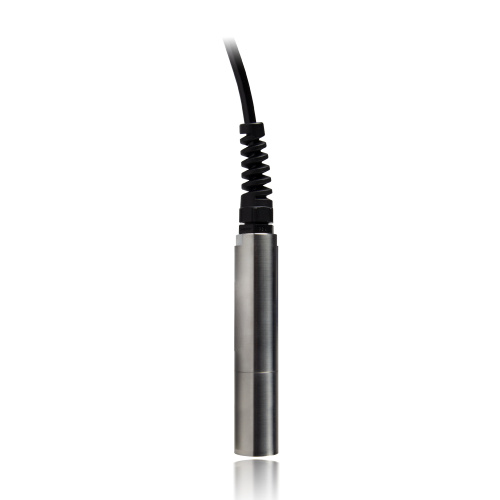

OPTOD Online Dissolved Oxygen Probe for Industry Wastewater

Get Latest Price

Measuring range	0~20mg/L
option	316L SS Ti POM
Contact Now

Model No.: OPTOD

Brand: daruifuno

Certification: ISO9001

Support Customization: Oem

Place Of Origin: China

Measuring Range: 0~20mg/L 0-200%

Working Pressure: 0~5bar

Working Temperature: 0~50℃

Temperature Compensation: Automatic

Signal: Modbus RS485

Response Time: T90<60s

Shaft Material: SS316L

Dimension: Diameter 25mm/Length 146mm

Power Supply: 5~12V DC

Product Name: digital dissolved oxygen sensor

Description

Product Description

Dissolved oxygen is one of the important factors for the survival and growth of organisms in water, so the importance of monitoring dissolved oxygen in industrial processes is self-evident. If the content of dissolved oxygen in the water is too low, it will cause the death of aquatic organisms and affect the ecological balance of the water body; while the content of dissolved oxygen that is too high will increase the concentration of oxides in the water and cause pollution to the environment. Many industrial occasions need to monitor the dissolved oxygen value of water quality, such as water treatment plants, beverage plants, food processing plants, pharmaceutical plants, chemical plants, etc. In water treatment plants, monitoring dissolved oxygen can help workers understand the oxygen levels in the water so that appropriate treatment and adjustments can be made. In beverage and food processing plants, monitoring dissolved oxygen ensures product quality and safety. In pharmaceutical and chemical plants, monitoring dissolved oxygen can help workers understand changes in oxygen levels during reactions in order to control production processes. Usually we will also use PH Sensor, Conductivity Sensor, COD Sensor and other water quality instruments for the industrial process. The OPTOD industrial inline Dissolved Oxygen Sensor adopts?Luminescent optical technology, it is compact, strong and light, the sensor allows a portable or in fixed/permanent use.

Features

● Ultra low power technology, meet the demands of field works and short or long term campaigns.

● Without oxygen consumption, accurate measure in all situation and especially in very low oxygen concentrations

● Store calibration and history data within the sensor, plug and play without re-calibration

● RS485 built-in, the Dissolved Oxygen Probe support Modbus protocol

● The protection grade is IP68, can work continuously and stably under water for a long time

● Body in Stainless steel 316 L or Ti optional

● built-in temperature unit, automatic temperature compensation

● Application:?Urban wastewater treatment / Industrial effluent treatment / Surface water monitoring / Fish farming /Drinking water

Specification

Product Name	Dissolved oxygen probe
Product Model	OPTOD
Brand Name	Daruifuno
Signal Type	Digital
Measuring Range	Oxygen content: 0.00~20.00 mg/L
Measuring Range	Saturation: 0~200%
Accuracy	0.1 mg/L 1%
Response Time	90% of the value in less than 60 seconds
Temperature Compensation	Automatic, built-in temperature unit
Signal Interface	Modbus RS485
Calibration Method	1 point or 2 point
Working Pressure	0~5Bar
Operating Temperature	0~50℃
Shaft Material	Stainless steel 316L, Titanium (option)
Dimensions	Diameter 25mm/Total length 146 mm
Connection	?barewires
Protection Grade	IP68
Power Supply	5~12V DC
consumption	Standby 25 μA
	Average RS485 (1 measure/ seconde) : 4.4 mA
	Average SDI12 (1 measure/ seconde) : 7.3 mA
	Current pulse : 100 mA
Stocking Temperature	-10~60℃
Weight	450g
