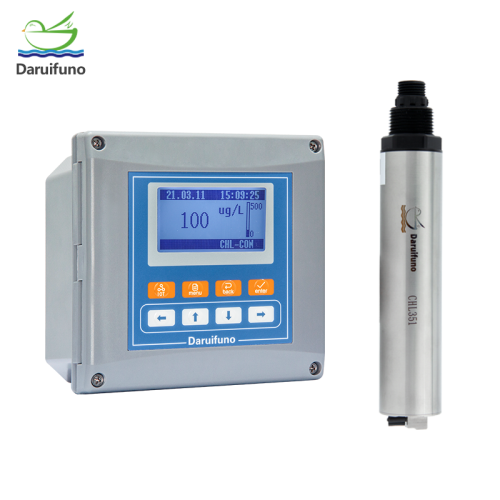

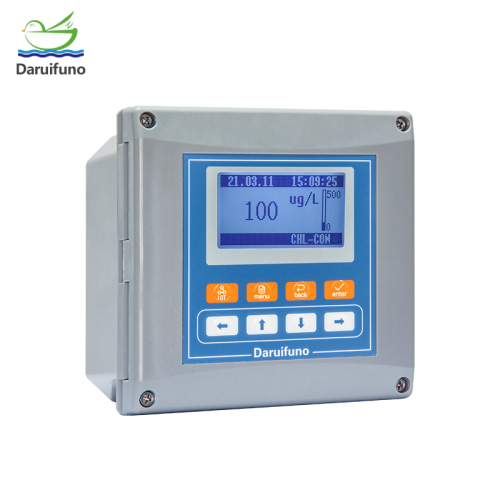

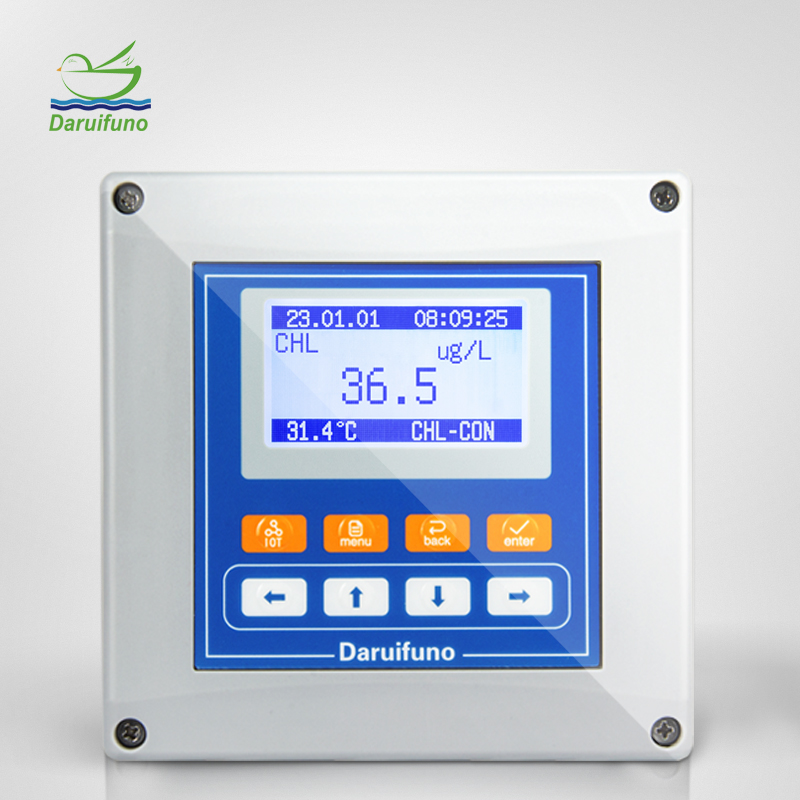

RS485 online chlorophyll meter controller seawater

RS485 online chlorophyll meter controller seawater

Get Latest Price

option	AC 100~240V DC 18~36V
Contact Now

Model No.: DUC2-CHL

Brand: daruifuno

Certification: ISO9001

Product Name: online chlorophyll meter

Current Output: 0/4~20mA

Communication: RS485 Modbus RTU

Display: 3.2 inch

Data Recording: 10000 historical data

Material: enhanced ABS

Dimension: 144*144*120mm

Support Customization: Oem

Place Of Origin: China

Display Range: 0~9999ug/L

Resolution: 0.1ug/L

Certification: ISO9001,CE

Description

Product Description

Chlorophyll is an important photosynthetic pigment in plant photosynthesis, which can be divided into four categories: a, b, c, and d. Chlorophyll is insoluble in water, but soluble in organic solvents, such as ethanol, acetone, ether, chloroform, etc.; chlorophyll is not very stable, and it will be decomposed by light, acid, alkali, oxygen, oxidant, etc.;? chlorophyll a exists in all phytoplankton, accounting for about 1% to 2% of the organic dry weight. Chlorophyll a itself is not harmful to the environment, but it is an important indicator for estimating the biomass of phytoplankton. By measuring the content of phytoplankton chlorophyll a in the water, the primary productivity and eutrophication level of the water body can be grasped. In environmental monitoring, chlorophyll a Content is one of the indicators to evaluate the eutrophication of water body. The DUC2-CHL Chlorophyll Controller can be connect with the Chlorophyll Sensor to realize the monitoring of water chlorophyll a.

Features Of Chlorophyll controller

Daruifuno's chlorophyll analyzer uses the characteristics of chlorophyll fluorescence to excite chlorophyll a in water with a 470nm light source to produce fluorescence, and measure the fluorescence intensity in the range of 660 to 700nm to calculate the concentration of chlorophyll a in the water.

● Compatible with all DRFN digital chlorophyll sensors;

● The working status of the sensor can be queried by the CHL controller, including reading the serial number;

● Support a variety of installation methods;

● Time and historical data recording function;

● 3.2-inch large LCD screen, easy operation;

● Password can be set to prevent misoperation;

● 2 SPST multi-function and settable relays to realize dosing control;

● Two 0/4~20mA active current loop outputs;

● RS485 interface, Modbus RTU communication protocol;

● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;

Specification Of Chlorophyll controller

Product Name	Digital Chlorophyll Meter
Product Model	DUC2-CHL
Brand Name	Daruifuno
Display Rang	0~9999ug/L
Resolution	0.1ug/L
Relay Control	2 settable SPST relays with a maximum load of 3A/250VAC
Analog Current Output	2 settable 0/4~20mA active current loop outputs, max load 1000Ω
Communication Method	RS485 interface; MODBUS RTU
Display Screen	128*64 LCD, adjustable backlight mode, adjustable display rate
Configuration Information	Power off protection, parameters are retained indefinitely
Time/Data Record	Record 10000 historical data
Maintenance Records	Last 100
Operating Temperature	0～60℃，RH<95% ( no condensation)
Storage Temperature	-20～70℃, RH<55% ( no condensation, precision instruments)
Shell Material	Enhanced ABS
Protection Grade	IP66
Dimension	144144120mm
Mounting Method	Wall mounting, pipe clamping, panel (hole size 138*138 mm)
Electrical Interface	The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm
Power Supply	100~240V AC or 18~36V DC
Power Consumption	7W
Weight	800g
