Features

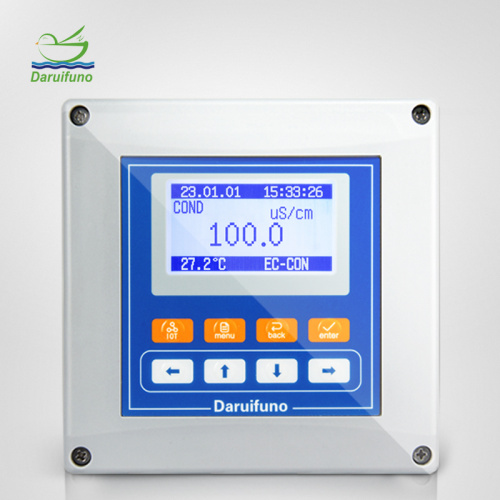

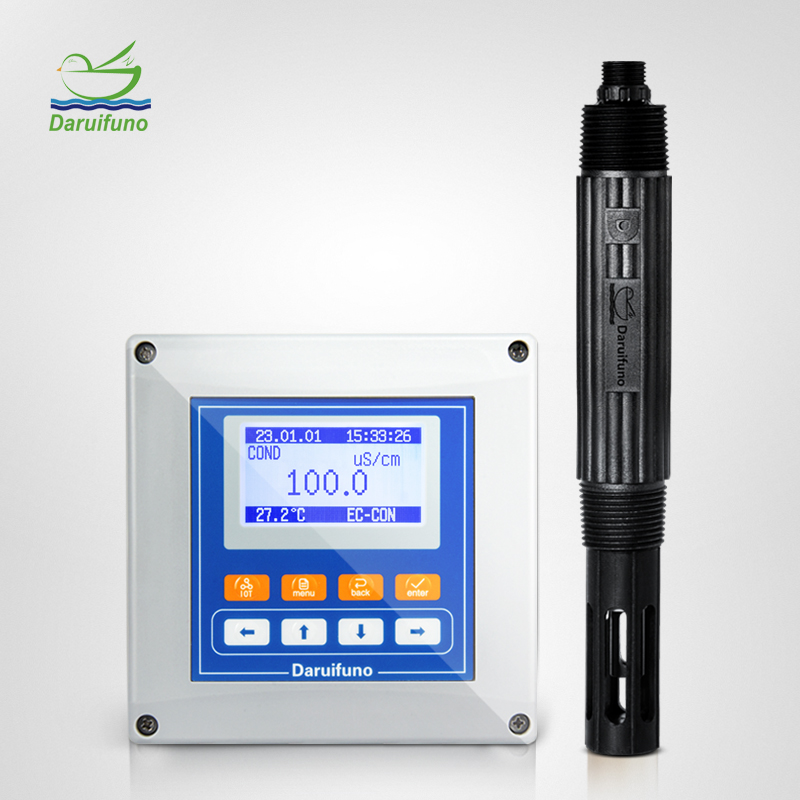

Online multi-functional conductivity controller, which can display the values of conductivity, resistivity, salinity and TDS
Rich current output functions, which can output conductivity, resistivity, salinity, temperature, etc.
The conductivity analyzer has an electronic clock and can record 10,000 points of historical data.
Two relay switches can control other equipment according to user needs
Various installation methods, providing matching Installation Accessories
Specification
| Product Name | Digital Conductivity Meter |
| Product Model | DUC2-EC |
| Conductivity Display Rang? | 0.00?S /cm ~500mS/cm |
| Resistivity Display Range? | 0.01Ω.cm~18MΩ.cm |
| TDS Display Range | 0.000mg/L~500g/L |
| Salinity Display Range | (0.00~10.0)% |
| Temp Display Range | -10～500℃ /14~932℉ |
| Resolution | 0.01?S /cm? ? 0.01Ω.cm? ?0.001mg/L? 0.01%? ?0.1℃/ 0.1℉ |
| Relay Control | 2 settable SPST relays with a maximum load of 3A/250VAC |
| Analog Current Output | 2 settable 0/4~20mA? |
| Communication Method | RS485 interface; MODBUS RTU |
| Time/Data Record | Record 10000 historical data |
| Operating Temperature | 0～60℃，RH<95% |
| Protection Grade | IP66 |
| Dimension | 144*144*120mm |
| Mounting Method | Wall mounting, pipe clamping, panel (hole size 138*138 mm) |
Application
In addition to being used in sewage situations, online conductivity analyzer can also be used in drinking water, municipal sewage, surface water, and industrial wastewater monitoring. Digital online conductivity instruments can achieve real-time, continuous conductivity monitoring, with fast response and accurate measurement. Monitoring the conductivity of wastewater can determine the effectiveness of wastewater treatment, such as whether dissolved salts and other pollutants are effectively removed. During the sewage treatment process, changes in conductivity can help adjust the treatment process to ensure that the treated water quality meets the discharge standards.
In actual conductivity monitoring, online conductivity controllers also face some challenges. Factors such as temperature, pressure, and flow rate will affect conductivity measurement, and calibration and compensation are required to reduce errors; conductivity sensors are used in sewage. Requires regular cleaning and maintenance.Delfino company focuses on the R&D and production of water quality analysis instruments. Our measurement parameters include pH, ORP, conductivity, TDS, salinity, dissolved oxygen, COD, ammonia nitrogen, turbidity, chlorophyll, blue-green algae, residual chlorine, and chlorine dioxide. wait. Our main products include pH ORP analyzer, conductivity analyzer, turbidity analyzer, COD analyzer, dissolved oxygen analyzer, ammonium analyzer, chlorine analyzer, etc. If you are interested in our product, please contact us.
