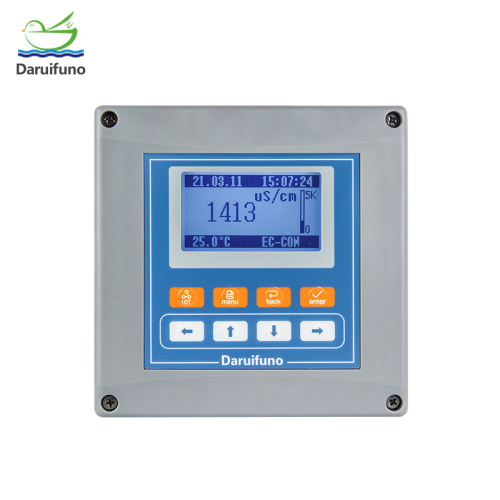

DUC2-EC Digital Conductivity Controller for Water Treatment



DUC2-EC Digital Conductivity Controller for Water Treatment

Get Latest Price

option	AC 100~240V DC 18~36V
Contact Now

Model No.: DUC2-EC

Brand: Daruifuno

Certification: ISO9001

Display Range: 0~500mS/cm

Resolution: 0.01us/Cm

Communication: RS485 Modbus RTU

Display: 3.2 inch

Data Recording: 10000 historical data

Material: enhanced ABS

Dimension: 144*144*120mm

Support Customization: Oem

Place Of Origin: China

Description

Product Description

The DUC2-EC series online Conductivity Controller developed and produced by Delfino is a digital analyzer, which can be connected with a Digital Conductivity Sensor to monitor the conductivity value of water quality. The conductivity sensors can be based on a two-electrode or four-electrode measuring principle.

Features Of Digital Conductivity Controller

● Compatible with all DRFN digital conductivity sensors;
● The working status of the sensor can be queried, including reading the serial number;
● Support a variety of installation methods;
● Time and historical data recording function;
● 3.2-inch large LCD screen;
● User-friendly English language interface;
● Password can be set to prevent misoperation;

● 2 SPST multi-function and settable relays;
● Two 0/4~20mA active current loop outputs;
● RS485 interface, Modbus RTU communication protocol;
● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;

● Separately have a list of controller and sensor settings for quick and detailed parameter setting;

Specification Of Digital Conductivity Controller

Product Name	Digital Conductivity Meter
Product Model	DUC2-EC
Brand Name	Daruifuno
Display Rang(conductivity)	0.00?S /cm ~500mS/cm
Display Range（TDS）	0.000mg/L~500g/L
Display Range（salinity）	(0.00~10.0)%
Display Range（Temp）	-10～500℃ /14~932℉
Relay Control	2 settable SPST relays with a maximum load of 3A/250VAC

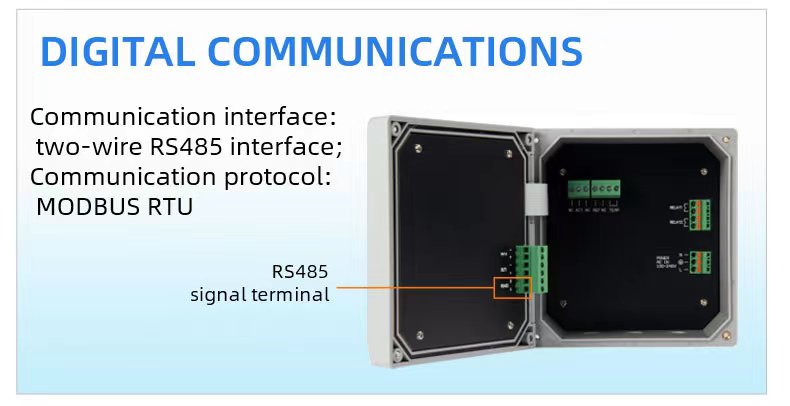

Communication Method	RS485 interface; MODBUS RTU; support JSON text data format
Display Screen	128*64 LCD, adjustable backlight mode, adjustable display rate
Configuration Information	Power off protection, parameters are retained indefinitely
Time/Data Record	Record 10000 historical data
Operating Temperature	0～60℃，RH<95% ( no condensation)
Storage Temperature	-20～70℃, RH<55% ( no condensation, precision instruments)
Shell Material	Enhanced ABS
Protection Grade	IP66
Dimension	144144120mm

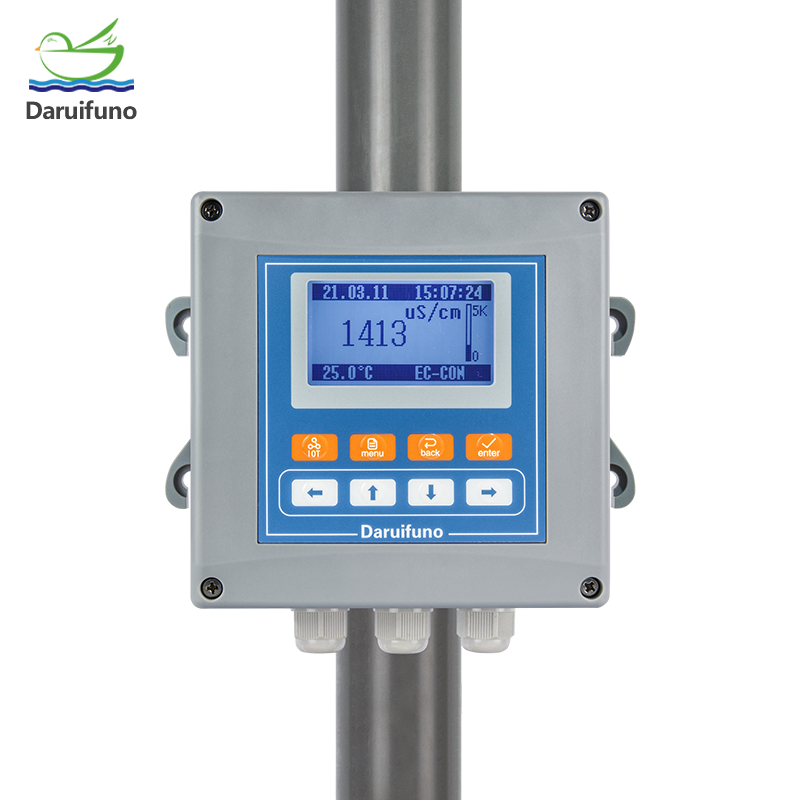

Mounting Method	Wall mounting, pipe clamping, panel (hole size 138*138 mm)
Electrical Interface	The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm
Power Supply	100~240V AC 50/60Hz or 18~36V DC optional
Power Consumption	7W
Weight	800g
