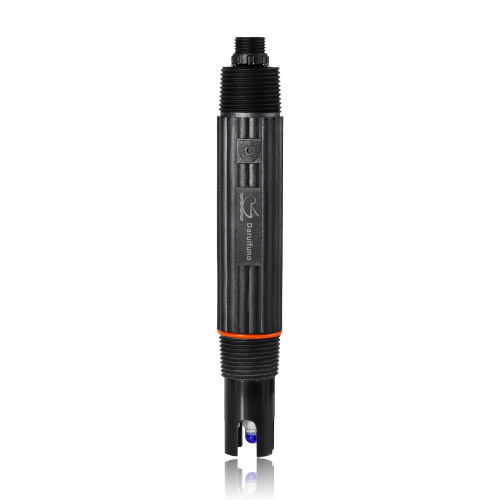

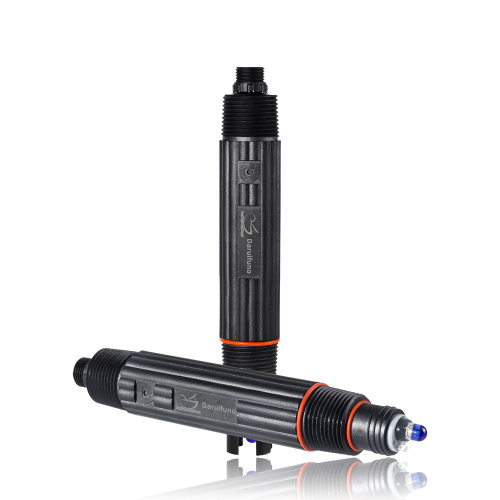

0-5V or 4-20mA pH Sensor - DPH790

Get Latest Price

Contact Now

Model No.: DPH790

Brand: Daruifuno

Certification: ISO9001

Support Customization: Oem

Place Of Origin: China

Description

Product Description

pH sensors and probes are usually communicated in two ways: analog and digital. Among them, the analog signal output refers to the analog signal output of the PH Sensor converting the pH value to 0-5V or 4-20mA through the transmitter; Digital signal output refers to the pH sensor through digital communication protocols (such as RS485, Modbus, etc.) to output the pH value in the form of digital signals.

Advantages

1. High precision: The Digital pH Sensor adopts a digital measurement method, which can achieve higher accuracy and stability and improve the accuracy of measurement.
2. Multiple communication methods: digital pH sensor can exchange data with other devices through a variety of communication methods, such as RS485, Modbus, etc., to facilitate data collection and processing.
3. Automatic calibration: The Digital pH Probe can realize automatic adjustment and calibration through the automatic calibration function, reduce manual intervention, and improve the reliability of measurement.
4. Remote monitoring: realize remote monitoring through the Internet and other means, which is convenient for users to remotely control and collect data.
In short, digital pH probes have many advantages and have gradually become an important measurement tool in the field of industrial automation.

Features

● pH combination electrode, the digital pH electrode is used for accurate detection for water treatment;

● The ph sensor has a built-in temperature resistance for temperature detection and compensation;

● RS485 interface, Modbus RTU, support access to standard industrial control system and pH ORP Controller;

● All-in-one package, can be used with the online transmitters, DTU, and portable instruments;

● The protection grade is IP68, the pH sensor can work continuously and stably under water for a long time;

● Internal storage of calibration data, support offline calibration, plug and play on site.

● 1" NPT mounting thread for flexible installation

Specification

Product Name	pH Probe/pH sensor
Product Model	DPH790
Measuring Range	0~14pH
Resolution	0.01pH
Accuracy	0.1% of the range or ±0.02pH, take the larger one; Temp: ±0.5℃
Communication	RS485 Modbus RTU
Response Time	T90＜10s
Working Pressure	0~4Bar
Temp. Compensation	built-in temperature unit, automatic temperature compensation
Operate Temperature	0~50℃
Calibration Method	Zero position calibration and slope calibration
Shaft Material	PPS
Dimensions	Diameter 35mm / Length220mm
Protection Grade	IP68
Installation	1 inch NPT at both ends; Immersed or piped installation
Power Supply	9~24V DC
Cable	Standard 5 meters

For more than ten years, Daruifuno has been focusing on the research and development and production of water quality analysis instruments. Our extensive product line includes not only?pH probe?&?pH sensor with?0-5V or 4-20mA , but also analyzers/meters, controllers and sensors/probes/electrodes for key water quality parameters such as pH, ORP, conductivity, turbidity, COD, dissolved oxygen, ammonium and chlorine. If you are interested in our?0-5V or 4-20mA?pH probe?&?pH sensor?or any other products, please feel free to contact us.
