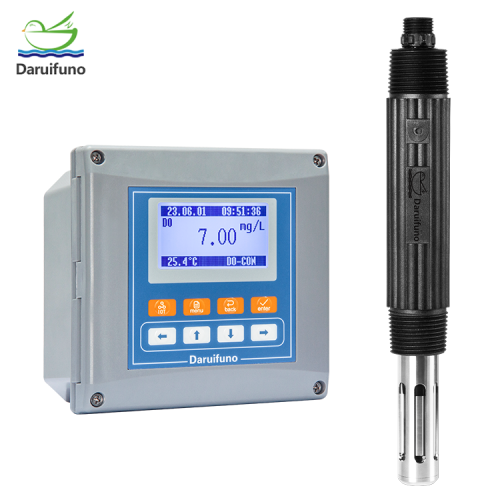

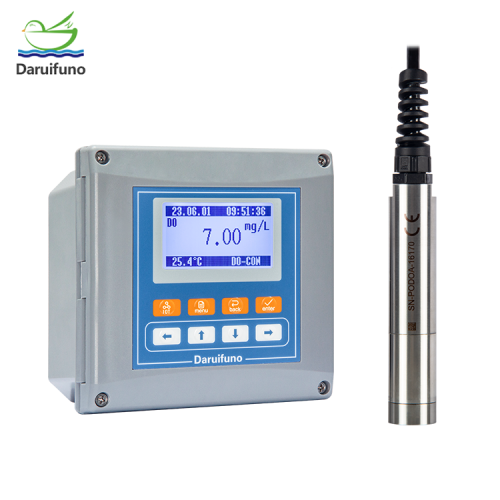

DUC2-DO Dissolved Oxygen Controller for Water Treatment

Dissolved oxygen refers to oxygen molecules dissolved in water. Dissolved oxygen in water is very important for maintaining the survival and growth of aquatic organisms. Several common principles for monitoring dissolved oxygen are: electrode method, reagent method, spectroscopic method, optical method, etc. Daruifuno's online Dissolved Oxygen Controller is a digital instrument. It can be connected with a digital fluorescent Dissolved Oxygen Sensor to realize continuous real-time monitoring of the dissolved oxygen value of water quality. The advantage of measuring dissolved oxygen content by fluorescence method is real-time measurement without reagents and oxygen consumption. The display screen of the controller is 3.2inch, it can display much information. As a controller, this dissolved oxygen analyzer has two relays and two 4-20mA current outputs, it also has RS485 interface and support Modbus protocol.

In some specific water treatment processes, such as sewage treatment and drinking water treatment, the monitoring of dissolved oxygen content can help evaluate the treatment effect. For example, in sewage treatment, changes in dissolved oxygen content can reflect the degradation of organic matter in wastewater. By monitoring the dissolved oxygen content by the dissolved oxygen analyzer, it is possible to determine whether the treatment process is effective and to adjust the treatment plan in time.

Specification

Product Name	Dissolved Oxygen Meter
DO Display Range	0-50mg/L (or ppm)
Saturation Display Range	0-400%
TEMP Display Range	-10～500℃ /14~932℉
Resolution	0.01mg/L? ?1%? ?0.1℃/0.1℉
Relay Control	2 settable SPST relays, 3A/250VAC
Analog Current Output	2 settable 0/4~20mA current loop outputs, max load 1000Ω
Communication Method	RS485 interface; MODBUS RTU
Display Screen	128*64 LCD, adjustable display rate
Time/Data Record	Record 10000 historical data
Maintenance Records	Last 100
Operating Temperature	0～60℃，RH<95%
Storage Temperature	-20～70℃, RH<55%
Shell Material	Enhanced ABS
Protection Grade	IP66

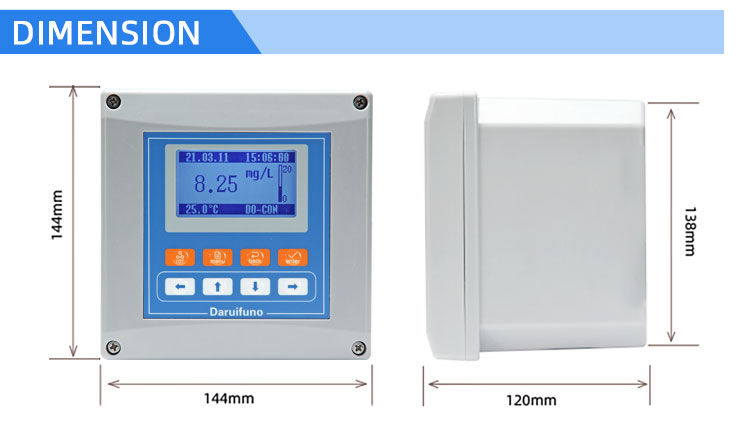

Dimension	144*144*120mm
Mounting Method	Wall mounting, pipe clamping, panel (hole size 138*138 mm)
Power Supply	100~240V AC 50/60Hz?or 18~36V DC
Power Consumption	7W

In addition to dissolved oxygen controllers, our company also has pH ORP analyzer, conductivity analyzer, turbidity analyzer, COD analyzer, ammonia analyzer, chlorine analyzer and so on. Our products are suitable for various water treatment occasions, if you are interested in our products, please contact us.
