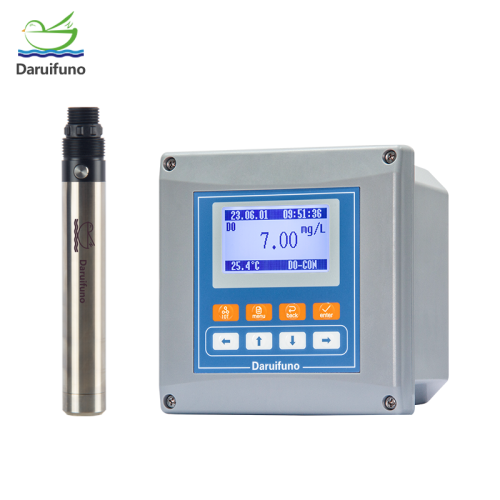

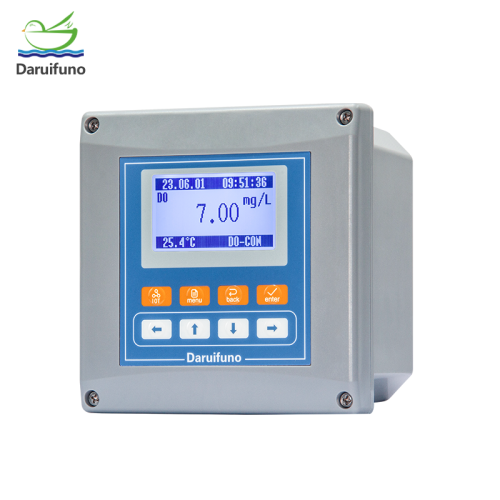

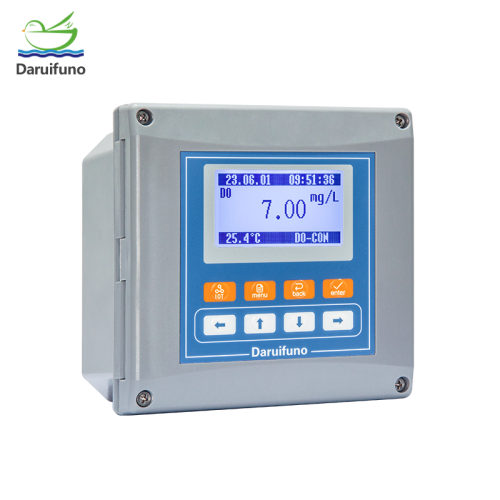

The dissolved oxygen meter for sewage treatment is a kind of equipment used to monitor and control the dissolved oxygen content in the sewage treatment process. It automatically regulates the amount of oxygen in the effluent to ensure the oxygen levels required for the growth and metabolism of bacteria and other microorganisms during treatment. This helps to improve treatment efficiency, reduce treatment time and costs, and at the same time reduce the amount of pollutants discharged from wastewater and protect the environment.
In the aquaculture industry, the control of dissolved oxygen is very important. Dissolved oxygen in water is one of the key factors in sustaining the survival of fish and other aquatic organisms. If the amount of dissolved oxygen in the water is too low, fish and other organisms will not be able to breathe, leading to death. On the other hand, if the dissolved oxygen content is too high, it will lead to an increase in the redox potential in the water, which will have toxic effects on the organism.
Therefore, during the aquaculture process, it is necessary to control the dissolved oxygen content in the water to ensure that the water quality is suitable and that fish and other aquatic organisms can grow and reproduce normally. Generally, the dissolved oxygen requirement in the aquaculture industry is not less than 5 mg of dissolved oxygen per liter of water. The DUC2-DO water oxygen meter has two relays which can make control of the equipment.
Features?
Specification
| Product Name | Dissolved Oxygen Meter |
| Display Range | DO: 0-50mg/L (or ppm), unit can be switched |
| Display Range | Saturation:?0-400% |
| Display Range | TEMP:?-10～500℃ /14~932℉ |
| Resolution | 0.01mg/L? ?1%? ?0.1℃/0.1℉ |
| Relay Control | 2 settable SPST relays with a maximum load of 3A/250VAC |
| Analog Current | 2 settable 0/4~20mA current loop outputs, max load 1000Ω |
| Communication | RS485 interface; MODBUS RTU |
| Display Screen | 128*64 LCD, adjustable display rate |
| Time/Data Record | Record 10000 historical data |
| Maintenance Record | Last 100 |
| Operating Temp. | 0～60℃，RH<95%? |
| Shell Material | Enhanced ABS |
| Protection Grade | IP66 |
| Dimension | 144*144*120mm |
| Mounting Method | Wall mounting, pipe clamping, panel (hole size 138*138 mm) |
| Power Supply | 100~240V AC 50/60Hz?or 18~36V DC |
| Power Consumption | 7W |
In addition to dissolved oxygen controllers, our company also has pH ORP analyzer, conductivity analyzer, turbidity analyzer, COD analyzer, ammonia analyzer, chlorine analyzer and so on. We also newly developed a multi-parameter controller that can connect different digital sensors at the same time to realize real-time continuous measurement of water quality parameters. If you are interested in our products, please contact us.
