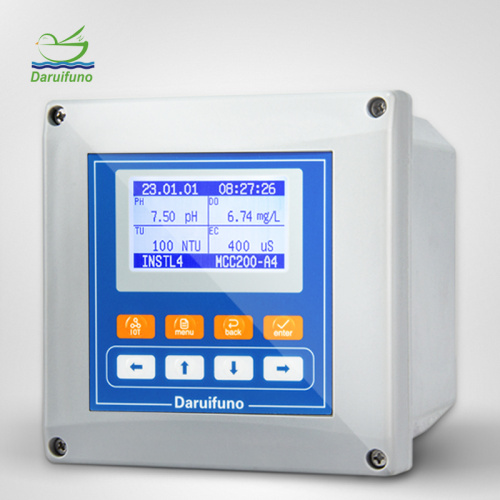

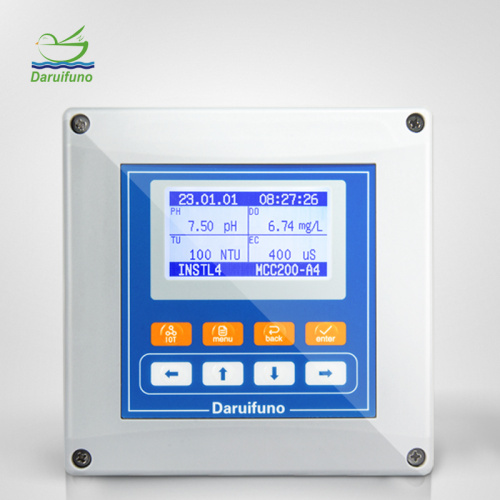

Online 4-channels Water Quality Multi-parameter Controller

Get Latest Price

option	100~240V 18~36V
Contact Now

Model No.: MCC200-A4

Brand: Daruifuno

Certification: ISO9001

Support Customization: Oem

Place Of Origin: China

Product Name: online water multi-parameter meter

Communication Interface: RS485 Modbus

Dimension: 144mm*144mm*120mm

Material: ABS

Description

Product Description

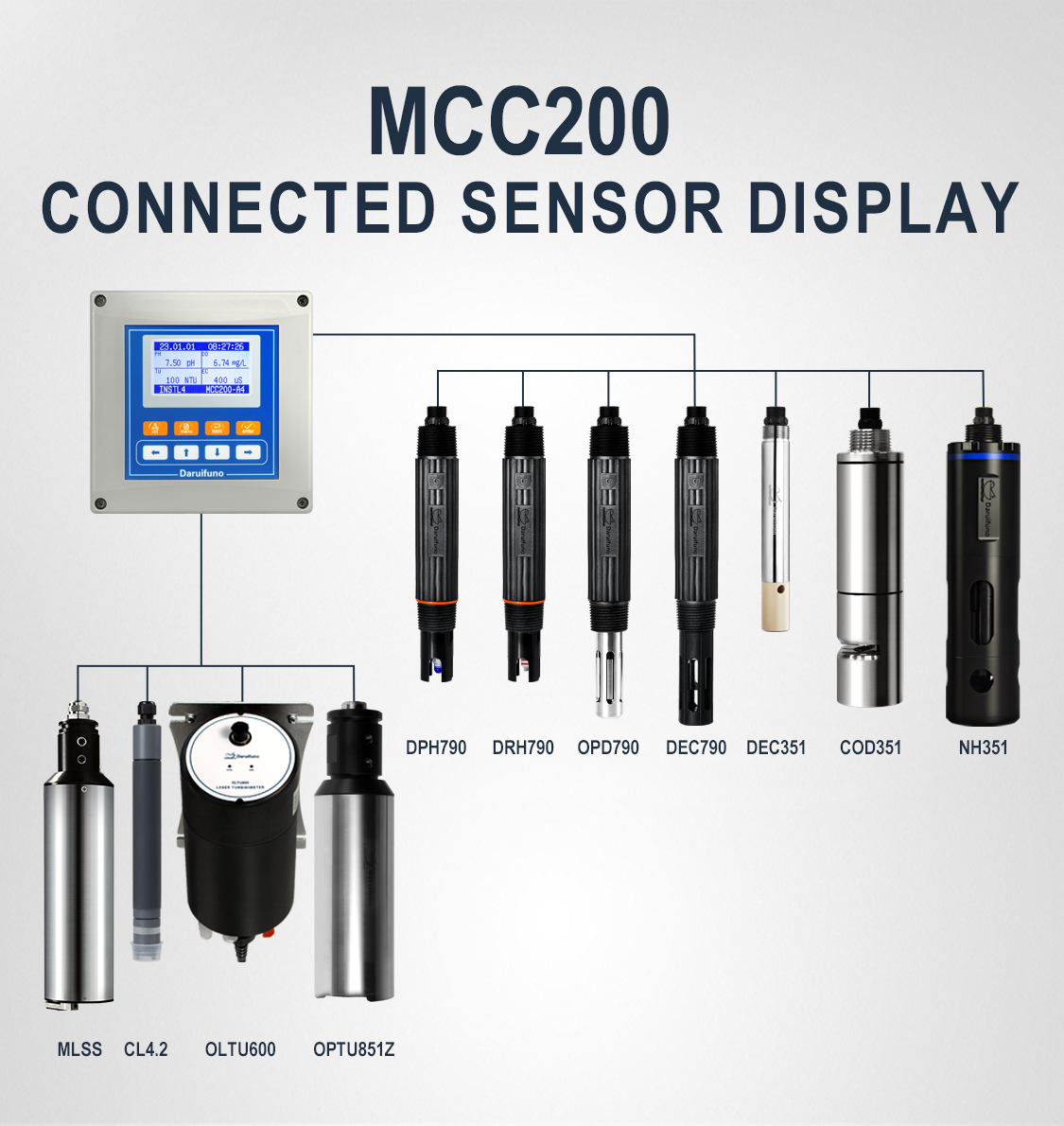

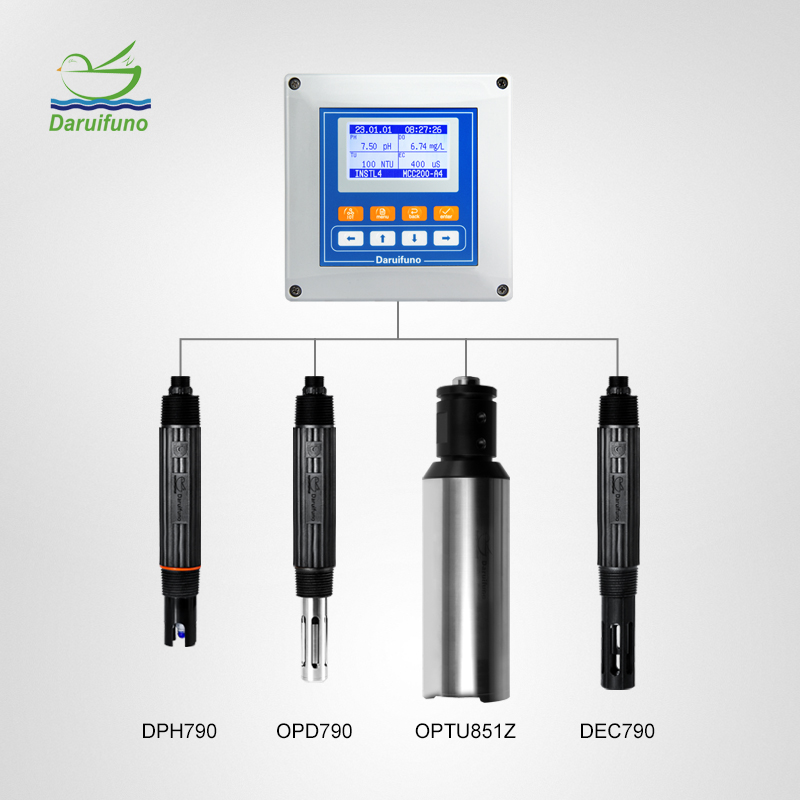

In the actual application of water quality monitoring, customers usually monitor multiple parameters of water quality at the same time. The online multi-channel controller MCC200-A4 developed and produced by Daruifuno supports the simultaneous connection of up to 4 digital sensors and displays up to 5 parameters including temperature. At present, the monitoring parameters supported by the multi-parameter controller are: PH, ORP, conductivity, dissolved oxygen, turbidity, COD, ammonia nitrogen, residual chlorine, oil in water, etc. This water quality multi-parameter controller has 3.2-inch LCD display and an RS485 digital interface for data transmission, and supports connection to various industrial control equipment. The multi-channel analyzer has time and historical data recording functions, which can record up to 7800 historical data, and can be used with a USB downloader to download historical data. The advantage of the multiparameter controller is that it can match different sensors according to customer needs. When used in surface water monitoring, you can choose online digital pH sensors, digital turbidity sensors, digital conductivity sensors, and digital dissolved oxygen sensors. These four parameters are conventional parameters for surface water monitoring. When used in drinking water monitoring, you can choose a combination of laser low turbidity sensors, residual chlorine sensors and pH sensors.

Features
IP66 protection level, can effectively prevent rain splashing or smoke intrusion
100~240V AC or 18~36V DC optional, both wide voltage power supply, can prevent interference caused by voltage instability
The multiparameter controller is large in size and supports panel, wall-mounted and pipe clamp installation

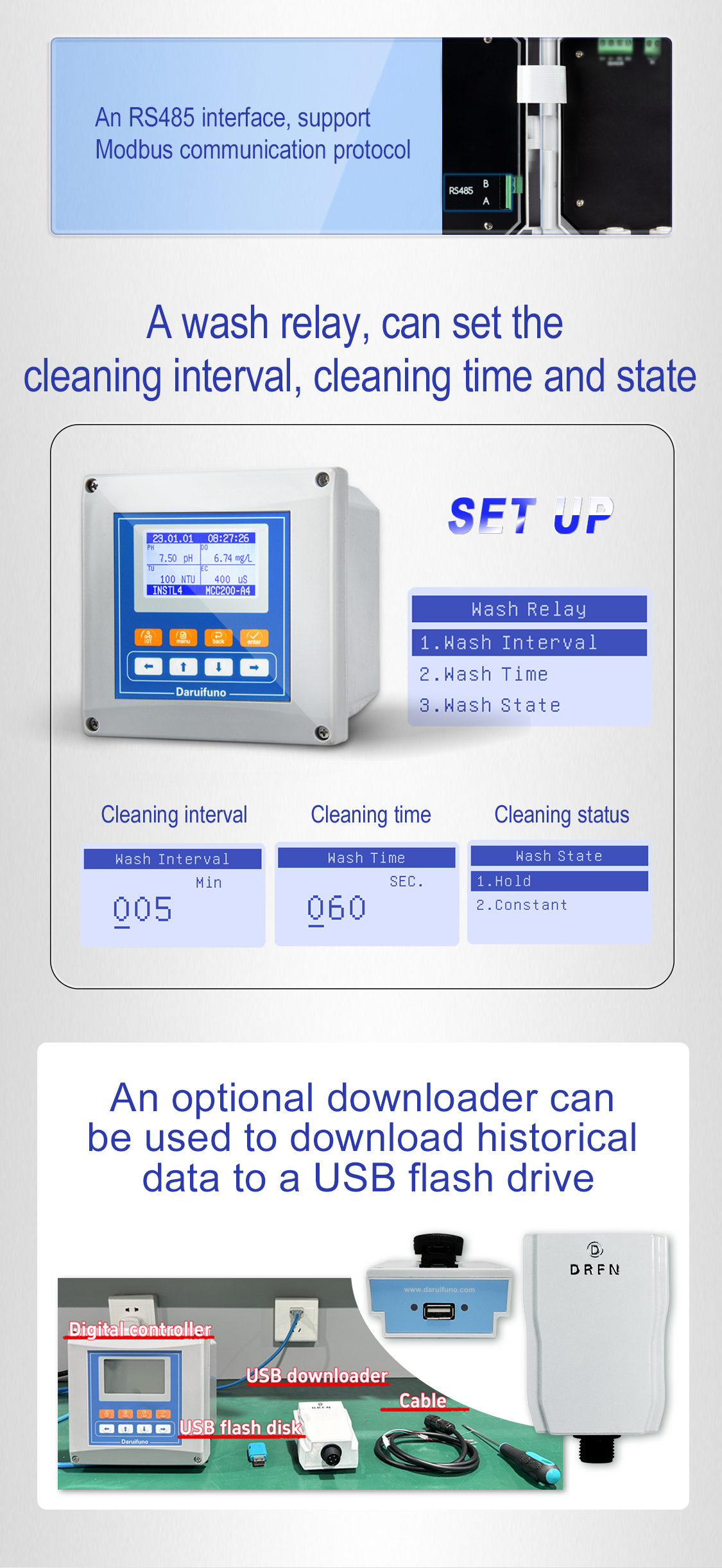

The controller comes with a cleaning relay by default, which can automatically clean the sensor with cleaning function

Specification

Product Name	Multi-parameter Water Quality Meter
Product Model	MCC200-A4
Channels	1~4 channels input
Detection Object	pH, Temp, conductivity, TDS, salinity, dissolved oxygen, turbidity, chlorine, ORP, COD, ammonia, MLSS, oil in water
PH Sensor	Principle: glass electrode method
	Range: 0~14pH, 0~50℃
	Accuracy: 0.01pH
Conductivity Sensor	Principle: 2-electrode or 4-electrode
	Range: 0~10mS/cm automatic switching, 0~50℃
	Accuracy: 1% of the measuring range
Dissolved Oxygen Sensor	Principle: fluorescence method
	Range: 0~20mg/L, 0~50℃
	accuracy: ±0.1mg/L?
Turbidity Sensor	Principle: infrared 850nm 90°?scattered light method
	Range: 0~1000NTU, 0~4000NTU
	Accuracy: <±1% of the measuring range
Configuration Information	Power failure protection, indefinite retention of parameters
Operating Temperature	0~60℃ RH<95%
Relay Output	Wash control, max. Load 3A/250V AC
Communication Method	RS485 interface
Communication Protocol	Modbus RTU, support JSON text
Time/Data Logging	Accurate to the second, record 7800 historical data,?support data download
Time/Data Logging	Recording interval can be set between 1 and 999 minutes
Display	3.2 inch 128*64 LCD screen
Protection Grade	IP66
Material	Enhanced ABS
Dimensions	144144120mm
Mounting	wall mounting, pipe clamp, panel mounting (open hole size 138*138mm)
Power Supply	AC: 100~240V, 50/60Hz or 18~36V DC

multiparameter water quality meter

online multiparameter water quality meter

The multi-parameter controller can automatically identify the connected digital sensor and can perform the sensor calibration function. In addition to displaying the connected sensor values, it can also display the conversion values of some parameters. For example, when the conductivity sensor is connected, the TDS and salinity values can also be displayed. When the COD Sensor is connected, the BOD and TOC values can also be displayed. In addition to the MCC200-A4 model, we also have the MCC200-A8 multi-parameter controller that supports connecting up to 8 sensors. Delfino's main products are pH ORP analyzer, conductivity analyzer, turbidity analyzer, COD analyzer, dissolved oxygen analyzer, ammonia analyzer, chlorine analyzer, etc. If you are interested in our water quality multi-parameter analyzer, please contact us.
