    Model No.MPS300

    Branddaruifuno

    CertificationISO9001

    Communication InterfaceRS485

    Support CustomizationOem

    Place Of OriginChina

    Product Namemultiparameter water probe

    Measuring ObjectpH, ORP, EC, TU, DO

    Protection GradeIP68

    Power Supply12V±5% DC

    Working Temperature0~50℃

    Description
    Product Description

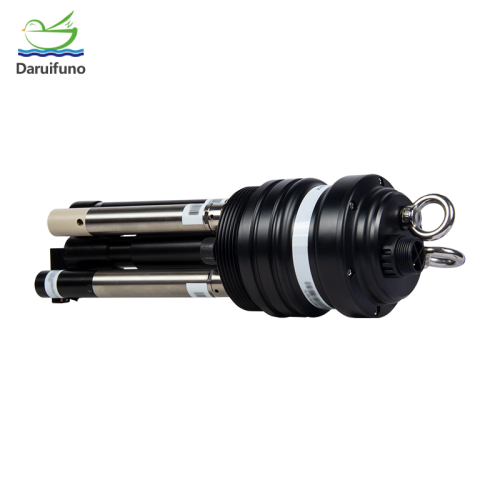

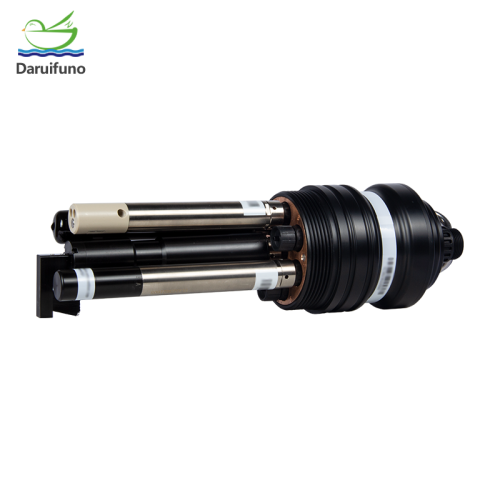

    Daruifuno multi-parameter water quality probe MPS300 adopts an all-in-one structure design, one Multi-Parameter Probe contains multiple water quality sensors, and can support up to 6 digital sensors. The measured parameters include fluorescent Dissolved Oxygen Probe, four-electrode Conductivity Probe, fiber optic Turbidity Probe and Digital pH Probe and other conventional probes, and also supports ORP Sensor , Chlorophyll Sensor, blue-green algae sensor and oil in water sensor. Customers can match according to their needs. This multi-parameter measuring cylinder adopts RS485 output and supports Modbus communication protocol. All calibration data are stored in the sensor, and each sensor has a waterproof connector for easy plug-in replacement. The multiparameter water sensor also has its own cleaning device, which can eliminate air bubbles and prevent microbial growth, and is suitable for environmental monitoring of various rivers, lakes, oceans and groundwater.


    Features
    One measuring cylinder can measure multiple parameters simultaneously without a controller
    Multiple parameters are optional: pH, ORP, conductivity, dissolved oxygen, turbidity, chlorophyll, blue-green algae and oil in water
    Digital RS485 output, support Modbus communication protocol
    Automatic cleaning device, which can effectively remove the contamination on the surface of the sensor

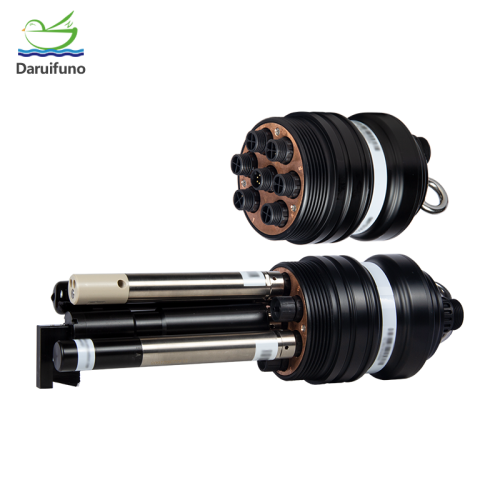

    All calibration parameters are stored in the Multiparameter Probe, and each probe has a waterproof connector, which is easy to plug in and out


    Specification

    Sensor Name Sensor Specification
    Dissolved Oxygen Sensor principle fluorescence
    measuring range 0~20mg/L
    accuracy ±0.3mg/L
    resolution 0.01mg/L
    material Ti+POM
    output RS485
    Digital Conductivity Sensor principle 4-electrode
    measuring range 1~5000uS/cm or 0~100mS/cm
    accuracy 1%FS
    resolution 0.0001mS/cm
    material Ti+PEEK+Ni
    output RS485
    Salinity Sensor principle 4-electrode
    measuring range 0~72ppt
    accuracy ±1ppt
    resolution 0.01ppt
    material Ti+PEEK+Ni
    output RS485
    Digital Turbidity Sensor principle 90° scattered light
    measuring range 0~1000NTU
    accuracy ±5% or 0.3NTU
    resolution 0.01NTU
    material Ti+Sapphire light guide column
    output RS485
    Digital pH Sensor principle Electrode method
    measuring range 0~14pH
    accuracy ±0.1pH
    resolution 0.01
    material Ti+POM
    output RS485
    Digital ORP Sensor principle Electrode method
    measuring range -999~999mV
    accuracy ±20mV
    resolution 1mV
    material Ti+POM
    output RS485
    Self-cleaning components material POM
    Self-cleaning frequency Power-on self-cleaning, rotate once every 30 minutes by default, adjustable frequency

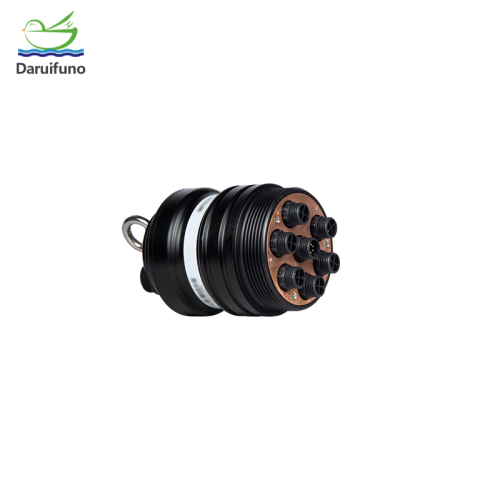

    Multi-parameter matrix/protective cover ports 7 waterproof ports, support up to 6 digital sensor access, 1 central cleaning brush, probe and cleaning brush can be disassembled, free combination and matching

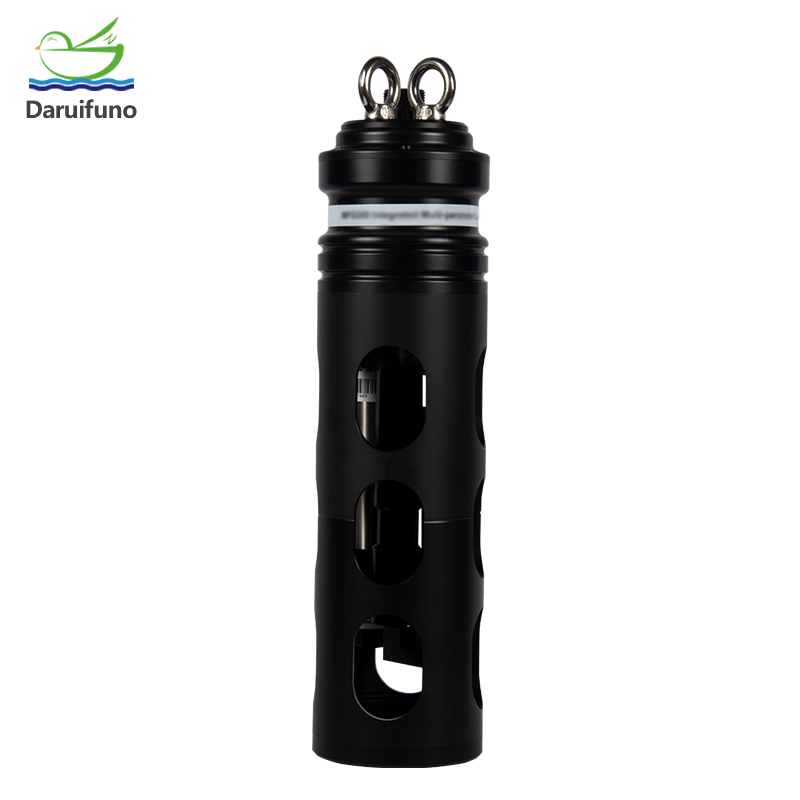

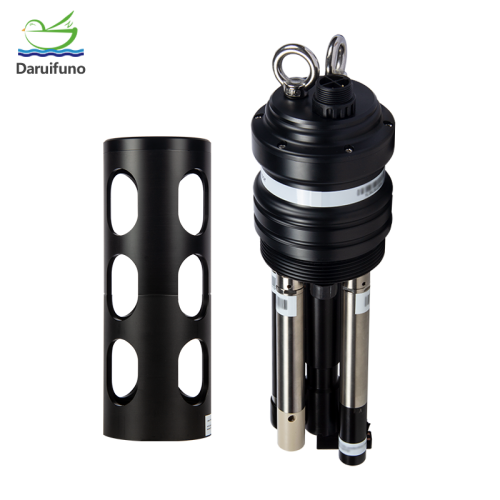

    protective cover standard
    cable 10 meters(customized)
    material POM
    output RS485
    Other information operating temperature 0~50℃
    calibration data Calibration data is stored in the probe, disassembly and replacement will not affect the data
    power supply Whole machine: DC 12V ±5%;
    single probe: 5V±5%
    working current 200mA

    The multiparameter probe is widely used for surface water monitoring, such as lake, river. It is also used for water treatment. If you are interested in our products, feel free to contact us!
