Online Conductivity Sensors for Industrial Water Systems

2025,06,04

Overview

Electrical conductivity (EC) is a vital parameter in industrial water treatment, indicating the concentration of dissolved ions. Online conductivity sensors offer a reliable, real-time method for monitoring water purity and optimizing system performance across diverse sectors such as power plants, chemical production, and food and beverage manufacturing.

Definition

An Online Conductivity Sensor, also known as an online EC Sensor, continuously measures the ability of water to conduct electrical current. These sensors are typically installed in pipelines or tanks and are integrated with control systems to support automated monitoring, reporting, and process adjustment.

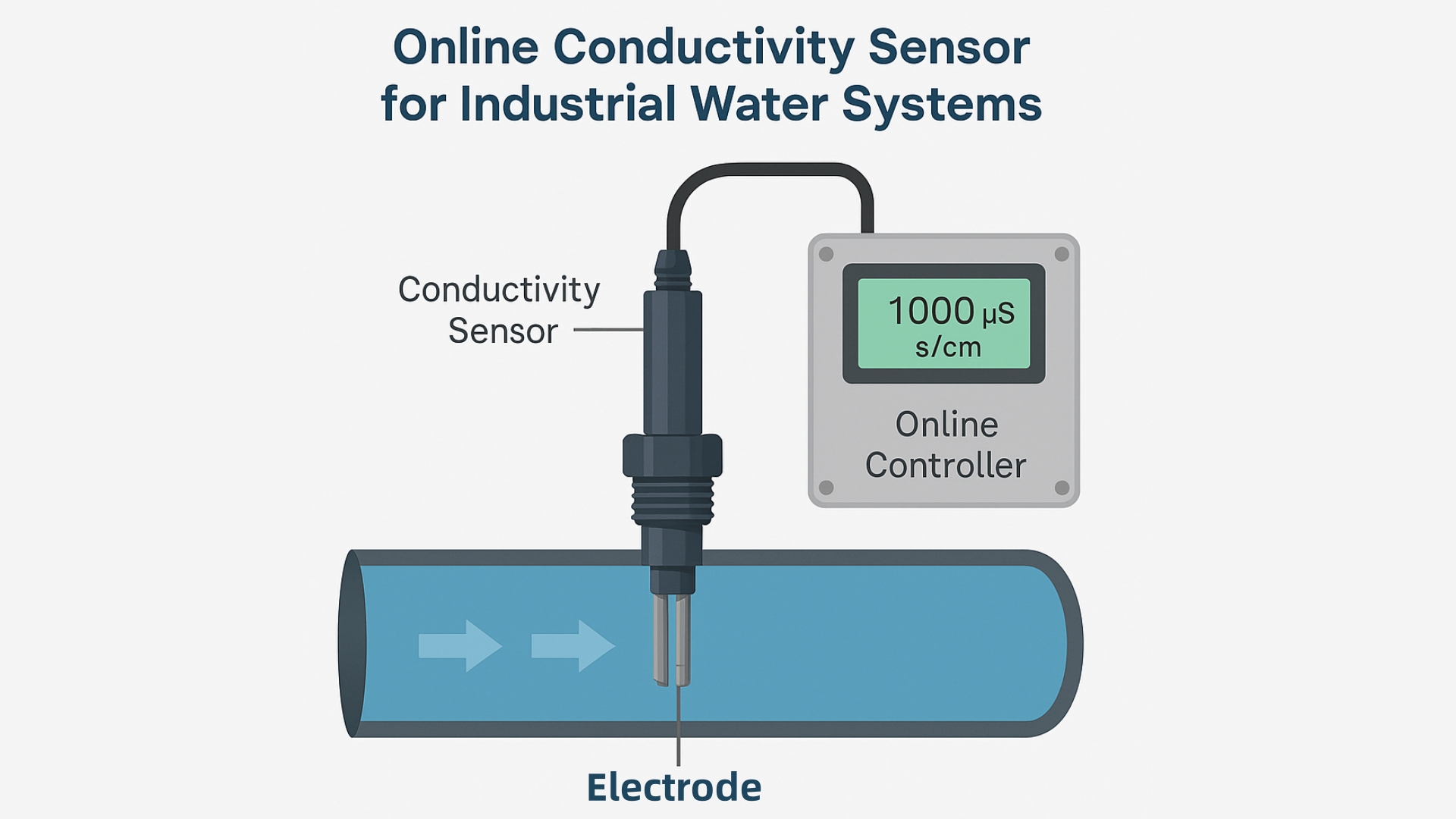

Schematic diagram of online conductivity sens

Working Principle

Online conductivity sensors operate based on Ohm’s Law and the relationship between voltage, current, and resistance. In a typical sensor, two or four electrodes are immersed in the water sample. A voltage is applied across the electrodes, and the resulting current is measured. The conductivity is then calculated based on the cell constant and temperature-compensated reading.

Applications

Online conductivity meters are widely used in:

Boiler and cooling water systems
Ultrapure water production in semiconductor and pharmaceutical industries
Desalination and reverse osmosis processes
CIP (Clean-in-Place) cycles in food and beverage plants
Ion-exchange resin monitoring in water softening units

Benefits of Using Online Conductivity Sensors

Real-time control: Immediate feedback enables fast response to process changes or failures.
Improved efficiency: Enables optimization of chemical dosing, water recycling, and maintenance schedules.
Cost savings: Prevents overuse of water treatment chemicals and avoids downtime caused by undetected issues.
Integration-ready: Most sensors support 4-20mA, Modbus or RS485 protocols, allowing data to be seamlessly transferred to a PC or remote system.

Why Choose Our Conductivity Sensors?

Our online conductivity sensors are designed for stable, long-term measurements in challenging industrial environments. With temperature compensation, corrosion-resistant materials, and digital signal outputs, they ensure accurate and consistent results. Custom installation options are available to match your specific system requirements.

Conclusion

Online conductivity sensors play a critical role in maintaining water quality across industrial systems. Their continuous data output helps ensure operational efficiency, compliance, and cost control. If your application demands accuracy and durability, our conductivity solutions are the perfect fit.

Explore our range of industrial conductivity sensors and find the right solution for your system.? View our Conductivity Sensor products here.
