Two-Wire RS485 Interface in Online PH/ORP Controllers

Application of Two-Wire RS485 Interface in Online PH ORP Analyzer

· Electrical Characteristics: The RS485 interface utilizes differential signaling for data transmission, where a logic '1' is represented by a voltage difference of approximately +(2-6)V between the two lines, and a logic '0' is represented by a voltage difference of approximately -(2-6)V. This electrical design endows the RS485 interface with excellent anti-interference capabilities and long transmission distances.

· Transmission Mode: The RS485 interface supports half-duplex communication, typically using two-wire shielded twisted pair cables for transmission. This bus topology allows for the connection of up to 32 devices (though practical limitations may apply) on the same bus, enhancing system flexibility and scalability.

· Multi-Station Capability: Compared to the RS232 interface, a notable advantage of the RS485 interface is its robust multi-station capability. Theoretically, it can support up to 128 transceivers operating on the same bus, though this number is often restricted in practical applications.

II. Specific Applications in Online PH/ORP Controllers

1. Data Communication: Online PH/ORP controllers communicate real-time data with host computers or other relevant devices through the RS485 interface. This communication ensures accurate transmission of key measurement data such as PH values and ORP (Oxidation-Reduction Potential), providing reliable data support for water quality monitoring and process control.

2. Convenient Networking: The bus topology of the RS485 interface makes networking online PH/ORP controllers incredibly straightforward. In scenarios requiring multiple monitoring points, controllers can be easily connected through the RS485 interface to form a comprehensive monitoring network.

3. Remote Monitoring: In conjunction with RS485 interface and remote communication technologies (such as Modbus-RTU protocol), users can achieve remote monitoring and management of online PH/ORP controllers. Through host computer software, users can view real-time measurement data, adjust controller parameters, receive alarm signals, etc., significantly improving work efficiency and response speed.

III. Application Precautions

· Terminating Resistors: In RS485 communication links, to reduce signal reflections and echo interference, it is common to insert terminating resistors (typically ranging from 100 to 140Ω, with 120Ω being typical) at both ends of the bus. This is particularly important for long-distance transmission or high baud rate communications.

· Bus Layout: Reasonable bus layout is crucial for ensuring the stability of RS485 communication. Avoid excessively long or short branch lines extending from the bus to minimize signal reflections and impedance discontinuities.

· Grounding: A good grounding system is also a key factor in improving the stability of RS485 transmission networks. Proper grounding can effectively reduce noise interference and enhance signal transmission quality.

In summary, the two-wire RS485 interface plays an indispensable role in online PH/ORP controllers. Its robust data transmission capabilities, flexible networking options, and convenient remote monitoring features provide powerful support for applications in water quality monitoring and process control fields. In practical applications, attention should be paid to the insertion of terminating resistors, the rationality of bus layout, and grounding treatment to ensure stable system operation.

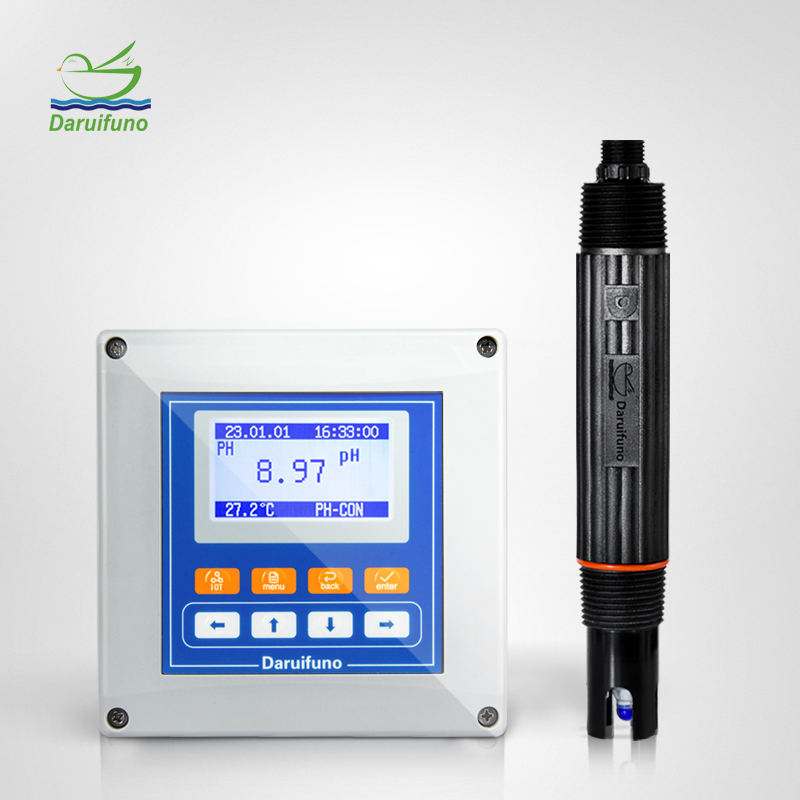

Daruifuno focuses on the research and development and production of online PH ORP Analyzer.
