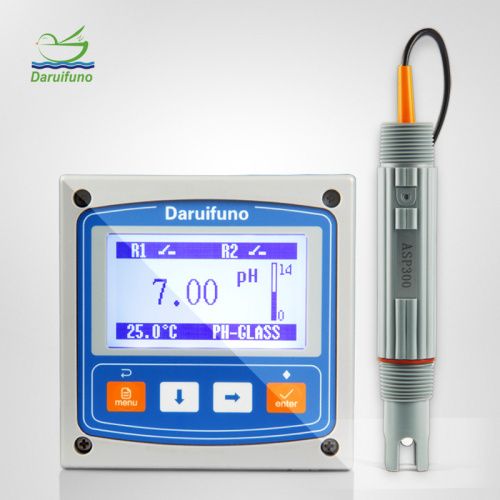

4-20mA pH ORP Controller for Sewage Treatment

Overview

The 4-20mA pH ORP Controller for Sewage Treatment is a crucial tool in managing the acidity or alkalinity of sewage in wastewater treatment plants. The pH ORP controller, also called a pH ORP Transmitter, measures the concentration of hydrogen ions in a solution on a pH scale of 0 to 14, where 7 is neutral, below 7 is acidic, and above 7 is alkaline. The controller is equipped with a PH Sensor and a pH ORP controller to ensure continuous monitoring and control of the pH of the water.

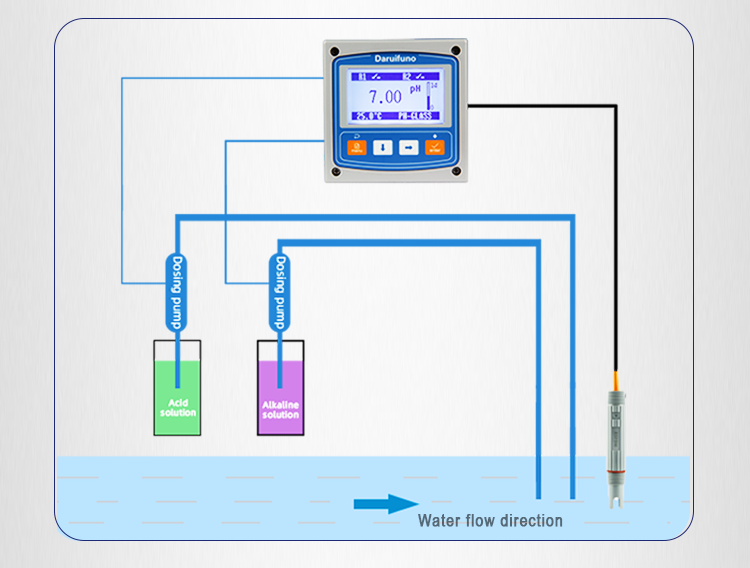

In sewage treatment, the composition of sewage is complex, and an improper pH level can lead to corrosion or blockage of treatment equipment. Therefore, using an online pH controller with a pH sensor can monitor the pH value of sewage and control the dosing pump through a relay to adjust the acid and alkali levels. This helps to maintain the pH value of sewage within the optimal range for different treatment processes, enhancing treatment effectiveness.

• Selectable AC or DC power supply, both powered by wide voltage to prevent interference caused by voltage instability.

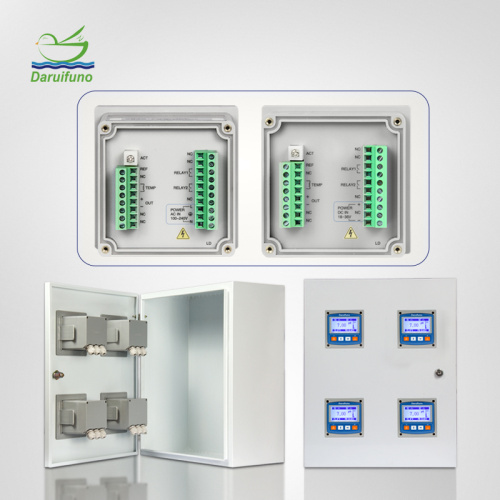

• Comes with matching panel mounting accessories and a waterproof gland head.
• Features a 3.2-inch LCD screen for clear display.
• Supports English system language for easy operation.
• Offers a six-digit passcode setting for security.
• Includes configurable SPST relays for controlling high and low alarm dosing.
• Has a 0/4-20mA current output for outputting pH or ORP values.
• Designed with high protection grade for durability.
• Operates within a temperature range of 0~60°C for both working and storage.
• Compact dimensions of 100*100*120mm for easy installation.
• Made of high-quality ABS material for robustness.

?

For more than ten years, Daruifuno has been focusing on the research and development and production of water quality analysis instruments. Our extensive product line includes not only pH ORP Controller & pH ORP Transmitter, but also analyzers/meters, controllers and sensors/probes/electrodes for key water quality parameters such as pH, ORP, conductivity, turbidity, COD, dissolved oxygen, ammonium and chlorine. If you are interested in our 4-20mA pH ORP controller for wastewater treatment or any other products, please feel free to contact us.
