Industrial pH sensors? for water are electrochemical sensors utilized to measure the pH of solutions, playing a pivotal role in various industrial processes. The pH values serve as indices for measuring the acidity and alkalinity of solutions. For numerous industrial procedures, controlling the pH values is of utmost importance.
Below are the significances of industrial pH electrodes in industrial processes:
Controlling the reaction processes: In many industrial operations, alterations in pH values can impact the reaction rates and the formation of reaction products. By employing pH electrodes, engineers can monitor and regulate the pH values during the reactions to ensure optimal conditions for their execution.
Water treatment: Analog pH sensors are also crucial in water treatment processes. The pH of water significantly influences water quality; excessively low or high pH values can lead to water quality issues. Utilizing pH electrodes, water treatment plants can monitor and control the pH of water to guarantee it meets quality standards.
Food processing: In food processing, the pH value is vital for ensuring the quality and safety of food. By utilizing pH electrodes, food processing facilities can monitor and regulate the pH values of food products to meet established standards.
?
Features
Industrial pH sensors feature high-performance PPS plastic shell encapsulation, offering resistance to high temperatures and corrosion.
They incorporate a built-in high-precision NTC10K temperature resistance for temperature detection and compensation.
The reference of the pH sensors employs a large-area annular porous PTFE membrane, known for its rapid penetration speed, quick response, resistance to clogging, and ease of cleaning. The reference electrode is Ag/AgCl, filled with saturated KCl + excess KCl crystals.
Standard low-noise leads are provided, with wire lengths customizable to suit requirements.

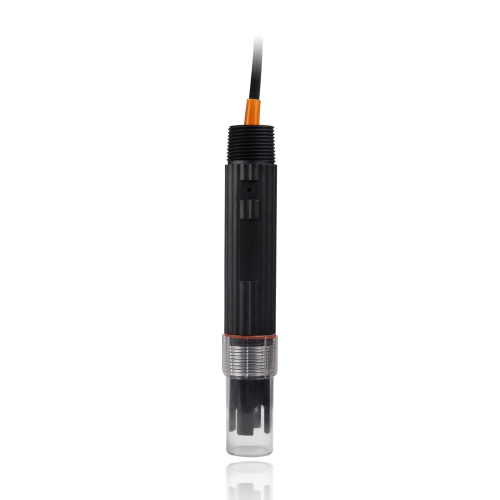

The ASP400 pH probes are suitable not only for clean water but also for industrial water, sewage, and other industrial applications.
With proper usage and maintenance, the service life of pH electrodes is relatively long.
?
Specification
| Measuring Range | 0~14pH |
| Indicating electrode | Low impedance hemispherical glass membrane |
| Reference System | Ag/AgCl reference electrode, double salt bridge, KCL+excess KCL crystal |
| Temperature Unit | PT100, PT1000, NTC10K, etc. support customization |
| Electrode Material | PPS+glass+porous PTFE diaphragm |
| Zero(E0)pH | pH 6.86 buffer solution: 6.86±0.3 pH |
| slope(SLOP)% | pH 4.01 pH 6.86 buffer solution＞95% |
| flow rate | 0.5m/s≥flow rate≥0.001m/s |
| Working Pressure | 0~6bar |
| Working Temp. | 0~100℃ |
| Thread Size | 1 inch NTP thread (both ends) |
| Dimension | Diameter: 35mm Length: 200 mm |
| Cable | default 5 meters,other length can be custom |
?
