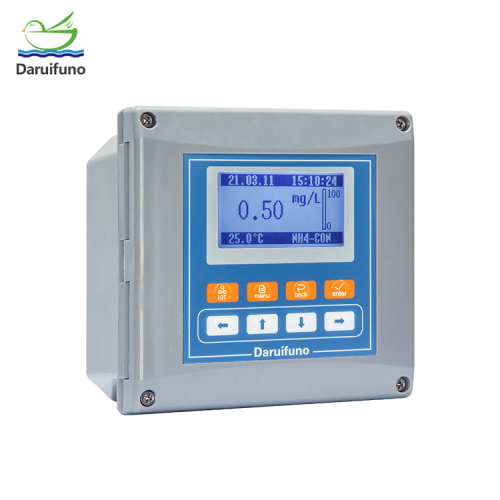

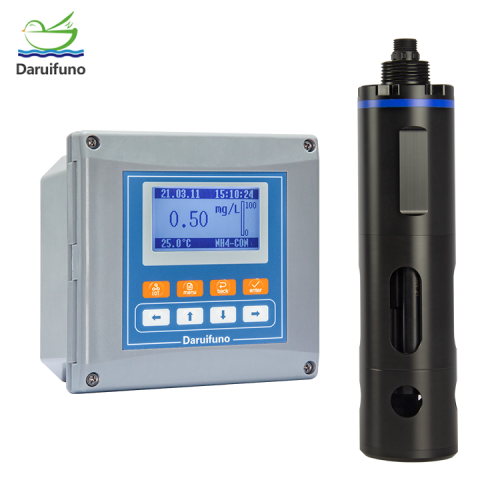

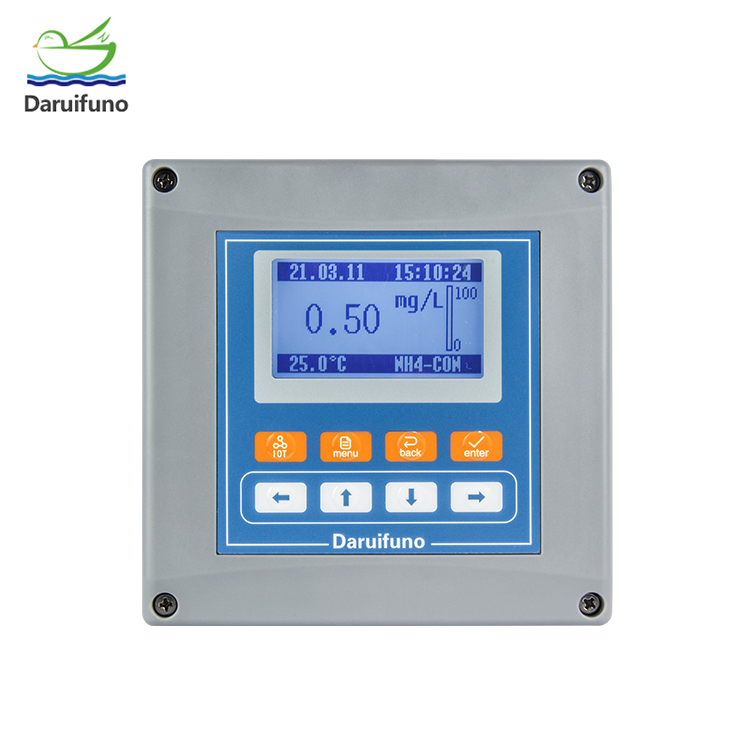

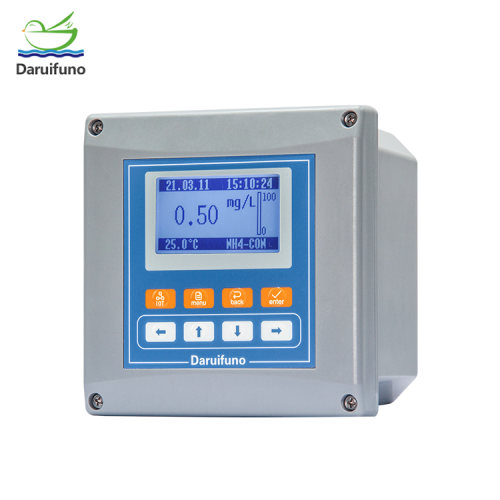

High low alarm online ammonia controller for sewage



High low alarm online ammonia controller for sewage

Get Latest Price

Measuring range	0-1000mg/L
option	AC 100~240V DC 18~36V
Contact Now

Model No.: DUC2-NH

Brand: daruifuno

Certification: ISO9001

Resolution: 0.01mg/L

Relay Control: Two SPST relays

Communication: RS485 Modbus RTU

Display: 3.2 inch

Data Recording: 10000 historical data

Material: enhanced ABS

Support Customization: Oem

Place Of Origin: China

Product Name: ammonia nitrogen controller

Display Range: 0-1000mg/L

Description

Product Description

Ammonia nitrogen refers to the total nitrogen content of ammonia and amino compounds in water. In the process of sewage treatment, ammonia nitrogen is a very important indicator, because it can reflect the degree of decomposition of organic matter and the content of nitrogen in sewage. Therefore, sewage plants need to monitor the value of ammonia nitrogen to ensure the quality and effect of sewage treatment. In the sewage treatment process, the monitoring of ammonia nitrogen is mainly concentrated in the water inlet, water outlet and various links in the treatment process. At the water inlet, monitoring the value of ammonia nitrogen can help the sewage plant understand the content and pollution degree of pollutants in the raw water, so as to carry out targeted treatment. At the water outlet, monitoring the value of ammonia nitrogen can help the sewage plant understand the treatment effect and ensure that the effluent meets national and local discharge standards. During the treatment process, monitoring the value of ammonia nitrogen can help the sewage plant understand the effect of each link in the treatment process and adjust the treatment plan in time. The DUC2-NH online Ammonia Controller developed and produced by daruifuno has 2 SPST relays, which can be connected to the control equipment to adjust the ammonia nitrogen value in the water. The NH351 online Ammonia Sensor used in conjunction with the controller adopts the ion selection method and the measuring range is 0~1000mg/L.

Features of? Ammonia Controller

● Compatible with all DRFN digital ammonia sensors;

● Time and historical data recording function;

● 2 SPST multi-function and settable relays;
● Two 0/4~20mA active current loop outputs;
● RS485 interface, Modbus RTU communication protocol;
● IP66 waterproof protection grade;
● The ammonia controller supports a variety of installation methods.

Specification of Ammonia Controller

Product Name	Ammonia analyzer
Product Model	DUC2-NH
Brand Name	Daruifuno
Display Rang	0-1000mg/L
Resolution	0.01mg/L??
Relay Control	2 settable SPST relays with a maximum load of 3A/250VAC
Analog Current Output	2 settable 0/4~20mA active current loop outputs, max load 1000Ω
Communication Method	RS485 interface; MODBUS RTU
Display Screen	128*64 LCD, adjustable backlight mode, adjustable display rate
Configuration Information	Power off protection, parameters are retained indefinitely
Time/Data Record	Record 10000 historical data
Maintenance Records	Last 100
Operating Environment	0～60℃，RH<95% ( no condensation)
Storage Environment	-20～70℃, RH<55% ( no condensation, precision instruments)
Shell Material	Enhanced ABS
Protection Grade	IP66
Dimension	144144120mm
Mounting Method	Wall mounting, pipe clamping, panel (hole size 138*138 mm)
Electrical Interface	The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm
Power Supply	100~240V AC 50/60Hz or 18~36VDC?
Power Consumption	7W
Weight	800g
