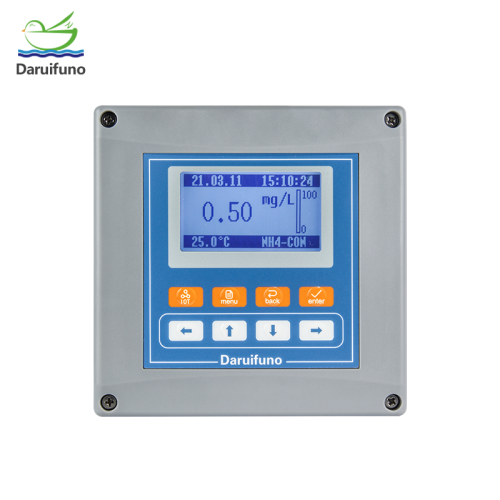

Aquaculture online monitoring ammonia controller with 4-20mA



Aquaculture online monitoring ammonia controller with 4-20mA

Get Latest Price

option	AC 100~240V DC 18~36V
Contact Now

Model No.: DUC2-NH

Brand: daruifuno

Certification: ISO9001

Product Name: ammonia nitrogen controller

Signal Type: Digital

Resolution: 0.01mg/L

Relay Control: Two SPST relays

Communication: RS485 Modbus RTU

Display: 3.2 inch

Data Recording: 10000 historical data

Material: enhanced ABS

Dimension: 144*144*120mm

Support Customization: Oem

Place Of Origin: China

Display Range: 0-1000mg/L

Description

Product Description

Ammonia nitrogen is an important water quality parameter that needs to be monitored in the aquaculture industry. Daruifuno's DUC2-NH online ammonia nitrogen controller can be connected with the Ammonia Sensor to realize real-time online continuous monitoring of the ammonia nitrogen value of the water quality. This Ammonia Controller has 2 SPST relay outputs, two 4-20mA current outputs and RS485 communication. The ammonia controller can control the cleaning of the ammonia sensor in water. For the aquaculture industry, how to control the ammonia nitrogen content in water??

1. Reasonably control the amount of feed and stocking density to avoid over-feeding and over-close feeding.

2. Strengthen the ventilation and water flow of the water body, increase the content of dissolved oxygen in the water body, thereby promoting the oxidation and decomposition of ammonia nitrogen.
3. Using technologies such as biological filters to convert ammonia nitrogen into harmless nitrite and nitrate.
4. Regularly clean the breeding ponds and filters and other facilities to avoid excessive accumulation of organic matter in the wastewater.
5. Select the appropriate species of aquatic organisms. Different species of aquatic organisms have different adaptability to ammonia nitrogen. Selecting the appropriate species can reduce the discharge of ammonia nitrogen.

Features of Ammonia Controller

● Compatible with all DRFN digital NH4-N sensors;

● The working status of the NH4-N sensor can be queried, including reading the serial number;

● Time and historical data recording function;
● 3.2-inch large LCD screen of the ammonia analyzer;

● Password can be set to prevent misoperation;
● Support a variety of installation methods.

Specification of NH4-N Controller

Product Name	Ammonia nitrogen controller
Display Rang	0-1000mg/L
Resolution	0.01mg/L??
Relay Control	2 settable SPST relays
Analog Current Output	2 settable 0/4~20mA
Communication Method	RS485 interface; MODBUS RTU
Time/Data Record	Record 10000 historical data
Maintenance Records	Last 100
Operating Environment	0～60℃，RH<95%?
Storage Environment	-20～70℃, RH<55%?
Shell Material	Enhanced ABS
Protection Grade	IP66
Dimension	144144120mm
Mounting Method	Wall mounting, pipe clamping, panel (hole size 138*138 mm)
Power Supply	100~240V AC 50/60Hz or 18~36V
