Laser principle swimming pool turbidity sensor 0~5NTU

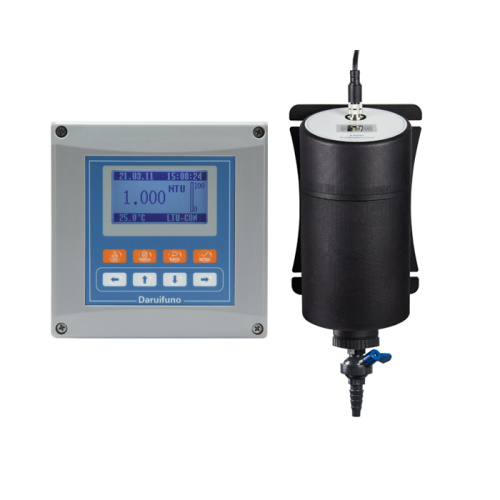

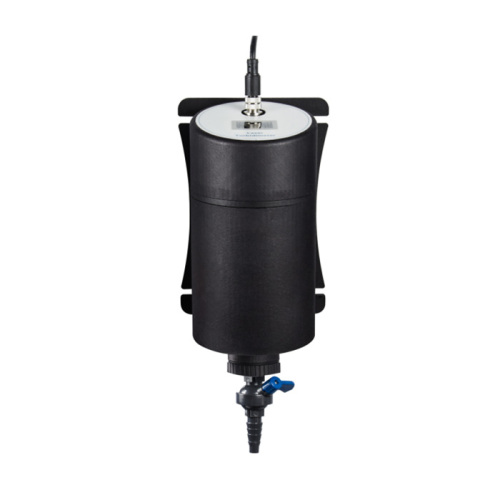

Pool turbidity monitoring is very important as it ensures the quality and cleanliness of the pool water. Turbidity in pool water refers to the concentration of suspended and dissolved matter in the water, which includes dirt, sweat, grease, chemicals, and more. If the turbidity of swimming pool water is too high, it will not only affect the sight of swimmers, but also may lead to health problems such as infectious diseases and allergies. The turbidity value of swimming pool water usually needs to be controlled between 0.5~1.0NTU, and different countries have different requirements. Monitoring the turbidity of the swimming pool requires a dedicated turbidity meter. The OLTU flow-through laser turbidity sensor developed and produced by daruifuno is designed for accurate measurement of low turbidity values. It can monitor the turbidity value between 0.001NTU~100NTU. Adopt 660nm laser light source with high resolution and fast response. The appearance design is small and compact, and it is easy to maintain. We also provide two options with display and without display. The DUC2-LTU Turbidity Controller can realize more control functions. Usually for swimming pool, we also provide online PH Sensor, Chlorine Sensor and ORP sensors.

1. Shoot the 660nm laser vertically downwards into the water

2. Measuring range: 0~100NTU, can switch between 0~5NTU, 0~10NTU, 0~40NTU, 0~100NTU

3. Low-cost flow-through low range turbidity sensor develoed by Delfino

4. Digital sensor, RS485 interface, support Modbus

5. support Offset correction, factor correction, linear calibration
