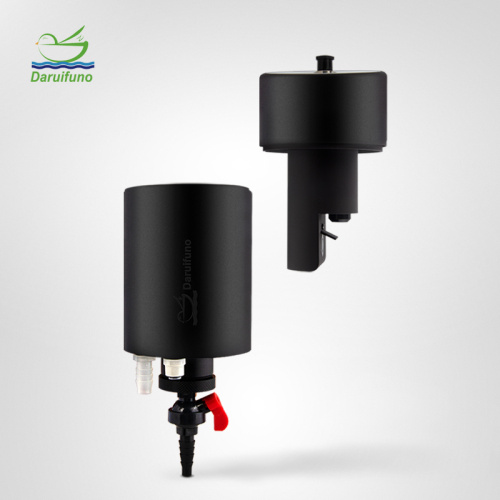

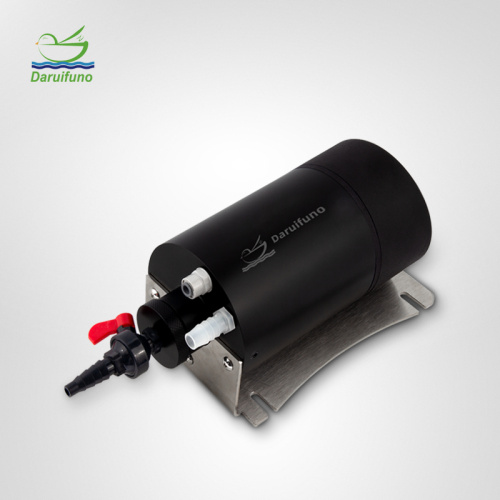

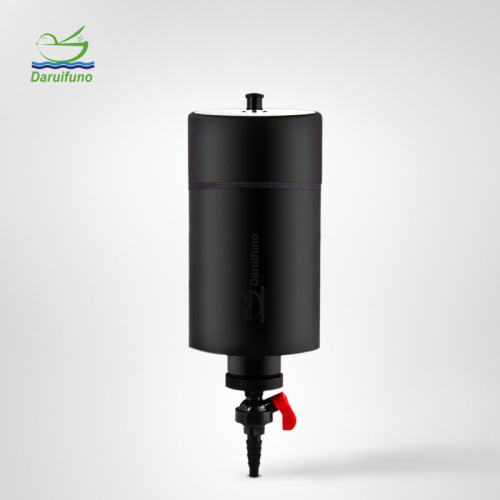

OLED Display Inline Turbidity Sensor for Drinking Water

Turbidity is one of the core indicators for measuring the quality of water. It is not only a sensory indicator that reflects the physical properties of drinking water, used to indicate the degree of clarity or turbidity of water, but also an indirect microbiological indicator. Inline Turbidity Sensor is usually widely used in water plants. According to different process sections, turbidity sensors with different ranges are required. Controlling the turbidity of factory water is the most basic and important function of a water plant. Water plants generally remove turbidity substances from raw water through sedimentation and filtration. In order to improve the sedimentation and filtration efficiency, it is usually necessary to add a certain amount of chemicals called "coagulants" such as alum or similar compounds to "destabilize" particulate matter such as colloids in the water, which means it is easier for them to agglomerate and grow. Large, easy to precipitate, and more likely to adhere to the surface of the filter material in the filter and be removed by filtration. A well-designed and well-operated water plant treatment process can control the turbidity of factory water below 0.3NTU or even lower regardless of the raw water quality. This requires online flow-through low-range turbidity sensors for water quality monitoring. The OLTU601 laser turbidity sensor has been upgraded on the basis of OLTU600. It is equipped with an OLED display. You can see the measurement data at any time without a controller display. There are also 3 operation buttons for calibration and communication settings without control. The operation of the turbidimeter is more convenient.

Specification

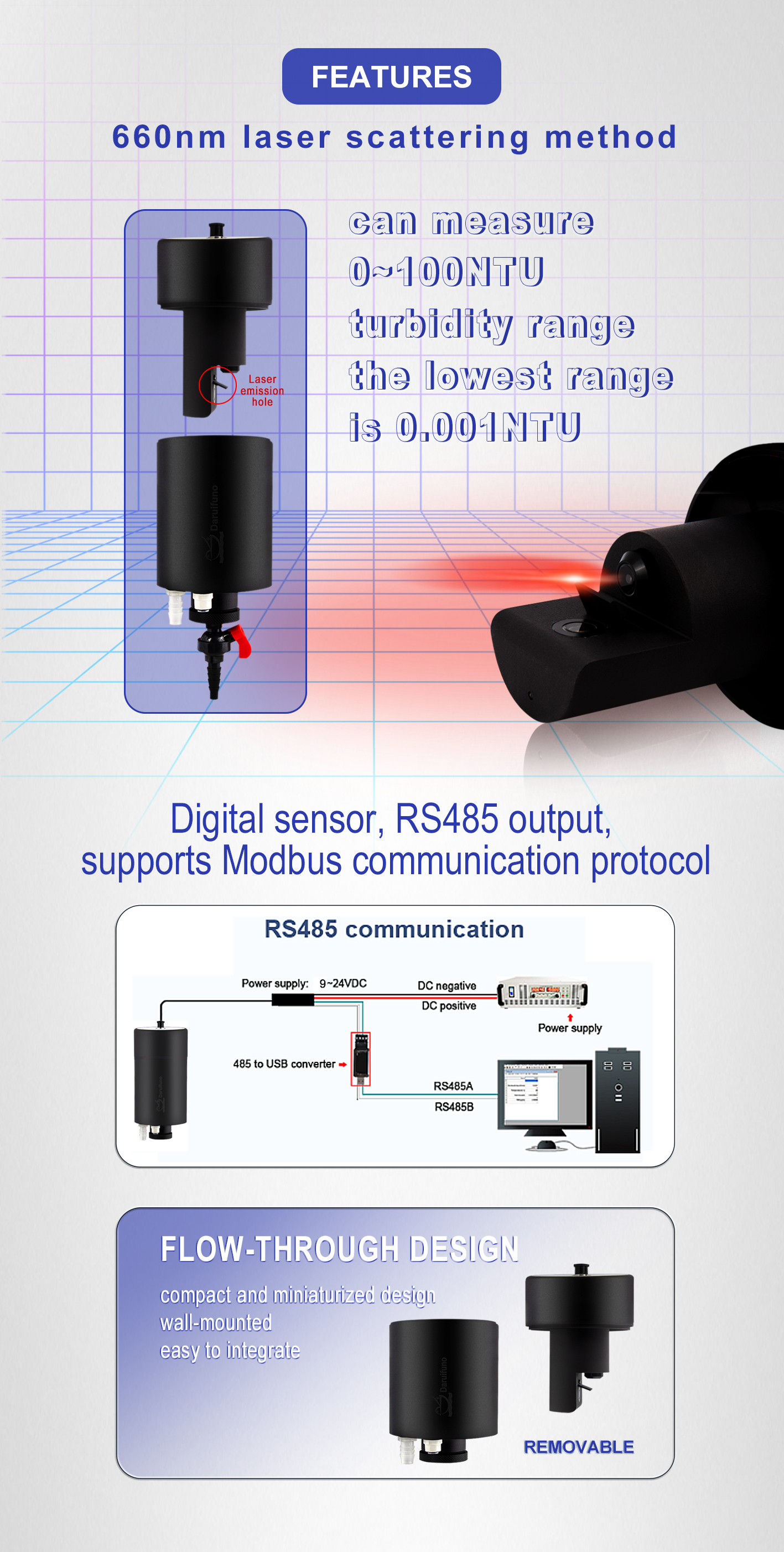

Drinking water treatment adopts a "multi-level barrier" strategy to reduce the concentration of pathogenic microorganisms in factory water. The most commonly used barriers include filtration and disinfection. Filtration is in the front and disinfection is in the back. Filtration can remove most of the pathogenic microorganisms in the water, while disinfection further inactivates the remaining pathogenic microorganisms in the water. Turbidity not only reflects the concentration level of microorganisms in the water, but also directly affects the inactivation effect of disinfection on pathogenic microorganisms. Today, some diseases are associated with exposure to unclean water. Delfino company focuses on the research, development and production of water quality instruments. Our main products include pH ORP analyzer, conductivity analyzer, turbidity analyzer, COD analyzer, dissolved oxygen analyzer, ammonium analyzer, chlorine analyzer, etc. Using an online turbidity sensor to monitor the turbidity value of the effluent from the filtration process section of the water plant can evaluate the effect of the filtration process, determine whether the filtration equipment is operating normally, whether it needs to be cleaned or replaced, etc., and problems in the filtration process can be discovered in a timely manner. Ensure water quality is up to standard. By monitoring turbidity values, water quality abnormalities can be detected in a timely manner, and corresponding measures can be taken to make adjustments and improvements to improve the quality of tap water and ensure the safety of residents' drinking water. Moreover, according to regulations and standards, the turbidity value of the effluent from the water plant needs to be monitored and controlled to meet the standard requirements.
