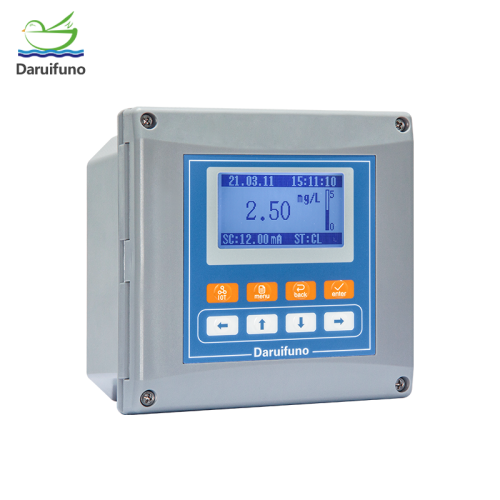

RS485 online residual chlorine meter for water treatment



RS485 online residual chlorine meter for water treatment

Get Latest Price

Measuring range	0.01~200mg/L
option	AC 100~240V DC 18~36V
Contact Now

Model No.: ADS2-FCL

Brand: daruifuno

Certification: ISO9001

Resolution: 0.01mg/L

Relay Control: Two SPST relays

Communication Protocol: Modbus RTU

Display: 3.2 Inch LCD

Material: enhanced ABS

Support Customization: Oem

Place Of Origin: China

Output: RS485, 4-20mA

Display Range: 0.01mg/L~200mg/L

Data Recording: 10000 historical data

Description

Product Description

Industrial process water refers to water used in production, manufacturing or processing, and its quality has a crucial impact on product quality and production efficiency. Residual chlorine is a disinfectant that can effectively kill bacteria and viruses in water and ensure the health and safety of water quality. However, excess chlorine can have a negative impact on human health and can also cause damage to industrial production. Therefore, in industrial process water, the content of residual chlorine needs to be strictly controlled to ensure the safety and stability of water quality. In the industrial water treatment process, the residual chlorine controller is a device that can automatically control the residual chlorine value in the water, which measures the residual chlorine content in the water and adjusts the amount of chlorine added to achieve the set residual chlorine value. The ADS2-C3 model universal disinfectant controller with Chlorine Sensor and chlorine pump enables an automated chlorination process that improves the efficiency and safety of water treatment.

Features?

● A universal controller specially designed for DRFN digital series disinfectant sensors;

● The working status of the chlorine sensor can be queried, including reading the serial number;

● Time and historical data recording function, meet higher data management requirements;
● 3.2-inch large LCD screen;

● User-friendly English language interface;
● Password can be set to prevent misoperation;
● 2 SPST multi-function and settable relays;
● Two 0/4~20mA active current loop outputs;
● RS485 interface, Modbus RTU communication protocol;
● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;
● Support a variety of installation methods.

Specification

Product Name	Chlorine meter
Product Model	ADS2-C3
Brand Name	Daruifuno
Display Rang	0.01mg/L~100g/L
Resolution	0.01mg/L??
Relay Control	2 settable SPST relays with a maximum load of 3A/250VAC
Analog Current Output	A settable 0/4~20mA active current loop outputs, max load 1000Ω
Communication Method	RS485 interface; MODBUS RTU; support JSON text data format
Display Screen	128*64 LCD, adjustable backlight mode, adjustable display rate
Configuration Information	Power off protection, parameters are retained indefinitely
Time/Data Record	Record 10000 historical data
Maintenance Records	Last 100
Operating Environment	0～60℃，RH<95% ( no condensation)
Storage Environment	-20～70℃, RH<55% ( no condensation, precision instruments)
Shell Material	Enhanced ABS
Protection Grade	IP66
Dimension	144144120mm
Mounting Method	Wall mounting, pipe clamping, panel (hole size 138*138 mm)
Electrical Interface	The back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm
Power Supply	100~240V AC 50/60Hz or 18~36V DC
Power Consumption	7W
Weight	800g

chlorine controller

Where do I need to use a chlorine controller? First of all, for some industrial production that requires high water quality, such as electronics, medicine, food and other industries, chlorine controllers are indispensable equipment. Secondly, in some public places with high water quality requirements, such as swimming pools, drinking water plants, etc., it is also necessary to use residual chlorine controllers to ensure the safety and stability of water quality. In addition, in some areas with poor water quality, such as industrial parks, sewage treatment plants, etc., it is also necessary to use residual chlorine controllers to purify water quality and ensure the safety and stability of water quality.
