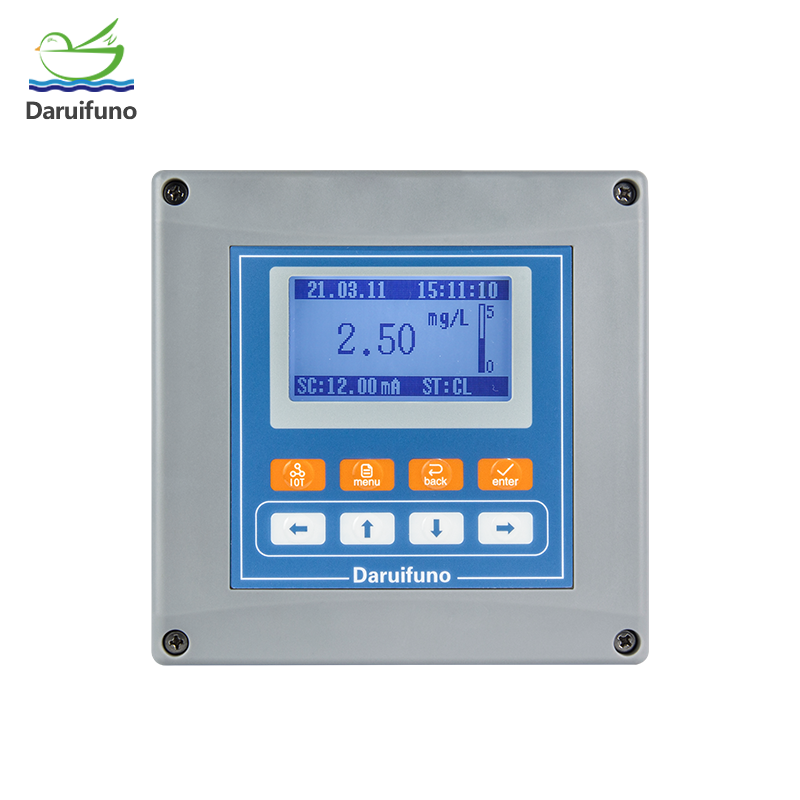

Automatic control 4-20mA amperometric free chlorine analyzer



Automatic control 4-20mA amperometric free chlorine analyzer

Get Latest Price

Measuring range	0.01mg/L~200mg/L
option	AC 100~240V DC 18~36V
Contact Now

Model No.: ADS2-FCL

Brand: daruifuno

Certification: ISO9001 CE

Current Output: 4-20mA

Digital Output: RS485

Resolution: 0.01mg/L

Relay Control: Two SPST relays

Display: 3.2 Inch LCD

Data Recording: 10000 historical data

Support Customization: Oem

Place Of Origin: China

Product Name: Chlorine analyzer

Display Range: 0.01mg/L~200mg/L

Description

Product Description

Residual chlorine refers to the chloride added during the disinfection process, and the chlorine-containing substances remaining after killing bacteria. Residual chlorine value refers to the remaining residual chlorine content in water, which is an important indicator to measure the effect of water treatment. In general, the residual chlorine value in water should be controlled within a certain range, neither too high nor too low. Too high a residual chlorine value will have an impact on human health, and too low a residual chlorine value will lead to substandard water quality and cannot effectively kill bacteria. Residual chlorine controllers are mainly used in occasions where water needs to be disinfected, such as drinking water, swimming pools, water treatment plants, etc. In these occasions, the residual chlorine content in the water can be automatically controlled through the residual chlorine controller to ensure that the water quality is safe and up to standard. In addition, in some occasions where water needs to be stored for a long time, the residual chlorine controller can also be used to regularly disinfect the water to ensure the stability and safety of water quality. The ADS2-C3 chlorine controller of the daruifuno brand provides data display, transmission and control. Two SPST relays can be connected to equipment such as dosing pumps to control the residual chlorine value in the water.

Features?

● A universal controller specially designed for DRFN disinfectant sensors;

● Time and historical data recording function, meet higher data management requirements;
● 3.2-inch large LCD screen;

● 2 SPST multi-function and settable relays;
● A?0/4~20mA active current loop outputs;
● RS485 interface, Modbus RTU communication protocol;
● Support a variety of installation methods.

Specification

Product Name	Chlorine Meter
Display Rang	0.01mg/L~100g/L
Resolution	0.01mg/L??
Relay Control	2 settable SPST relays with a maximum load of 3A/250VAC
Analog Current	A settable 0/4~20mA active current outputs, max load 1000Ω
Communication	RS485 interface; MODBUS RTU
Display Screen	128*64 LCD, adjustable display rate
Time/Data Record	Record 10000 historical data
Maintenance	Last 100
Operating Environment	0～60℃，RH<95%
Storage Environment	-20～70℃, RH<55%
Shell Material	Enhanced ABS
Protection Grade	IP66
Dimension	144144120mm
Mounting	Wall mounting, pipe clamping, panel (hole size 138*138 mm)
Power Supply	100~240V AC 50/60Hz or 18~36VDC
Consumption	7W

We also offer complementary laminated amperage chlorine sensors for tap water, drinking water, sewage or pool water. For detailed options and ranges, please contact us for us!

In addition to water quality chlorine analyzers, our company also has pH ORP analyzer, conductivity analyzer, turbidity analyzer, dissolved oxygen analyzer, COD analyzer, ammonia analyzer, etc. We also newly developed a multi-parameter controller that can connect different digital sensors at the same time to realize real-time continuous measurement of water quality parameters. If you are interested in our products, please contact us.
