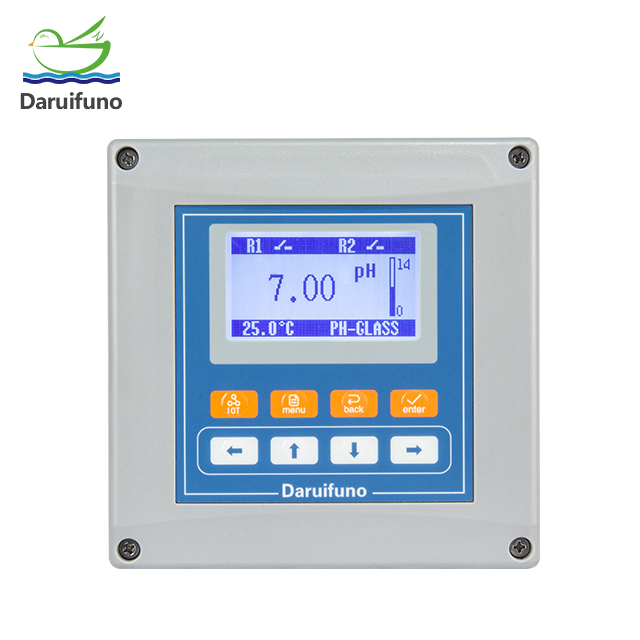

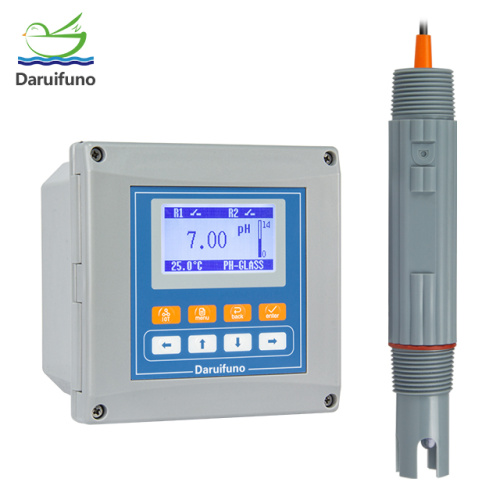

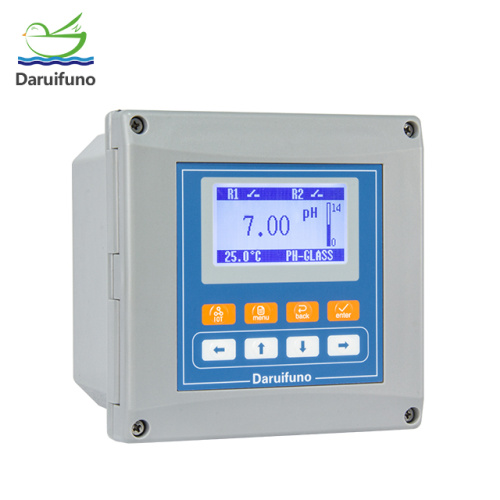

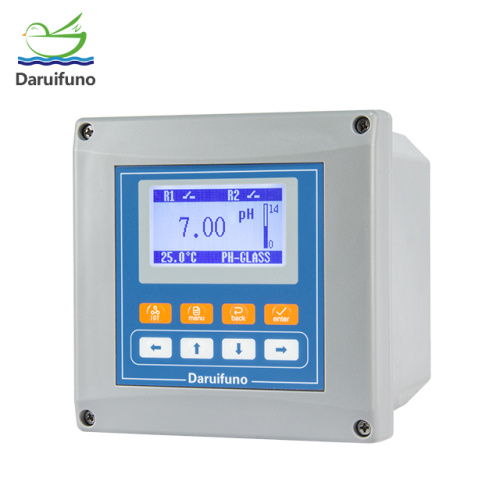

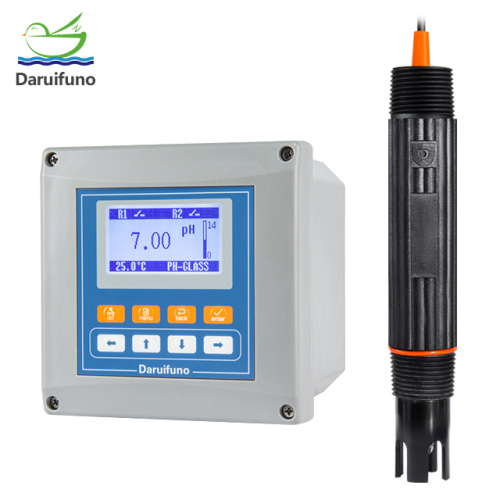

Industrial pH Controller Meter Transmitter for Water



Industrial pH Controller Meter Transmitter for Water

Get Latest Price

Measuring range	0~14pH ±2000mV
option	AC 100~240V DC 18~36V
Contact Now

Model No.: APX2-C3

Brand: daruifuno

Certification: CE, ISO9001

Support Customization: Oem

Place Of Origin: China

Warranty: 1 Year

ORP Range: -2000~+2000mV

Resolution: 0.01pH / 1mV

Relay Output: two SPST relays

Communication Interface: RS485

Dimension: 144*144*120mm

PH Range: 0~14pH

Analog Output: two 0/4~20mA

Description

Product Description

A pH controller is an instrument used to monitor and control the pH of liquids. It is widely used in industrial and environmental monitoring and plays an important role. In industry, pH controllers are widely used in chemical, pharmaceutical, food processing and other industries. It can monitor and control the pH in the production process to ensure the quality and stability of the product. For example, in the pharmaceutical industry, pH controllers can monitor the pH of pharmaceutical products to ensure their safety and effectiveness; In food processing, pH controllers can monitor the pH of food to ensure taste and quality. pH controllers also play an important role in environmental monitoring. It can be used to monitor the pH of water bodies. This APX2-C3 pH meter transmitter has time and historical data?recording function can meet higher data management requirements.

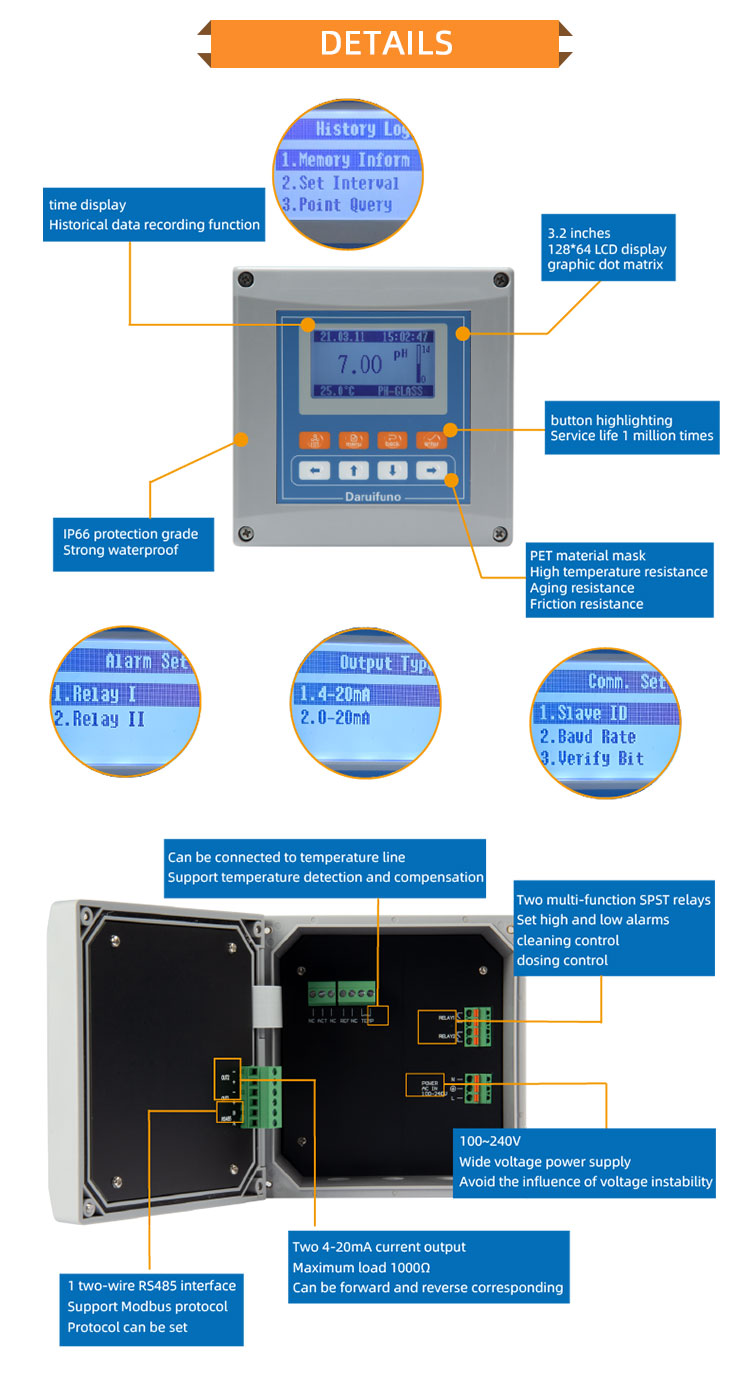

Features

● The measurement method of pH glass electrode , is applied to various PH/ORP monitoring and dosing control occasions;

● Support a variety of installation methods, wall mounting, pipe clamp installation, panel installation;

● Record 10,000 historical data, and the recording interval can be set between 1 and 999 minutes;

● The protection grade of the enclosure is IP66;

● Two settable SPST multifunctional relays;

● Two high-precision 0/4~20mA current outputs;

● A two-wire RS485 interface, the communication protocol is MODBUS RTU;

● 128*64 large LCD screen, multiple languages available;

● The menu password can be set to facilitate hierarchical management;

● Temperature compensation and detection function;

● Provide AC and DC power supply modes, both of which are wide-voltage power supply.

Specification?

Measurements	pH, ORP
Measuring Range	pH:0~14pH? ?ORP:-2000~2000mV? ?Temp.:-10~150℃
Resolution	pH:0.01pH? ? ORP:1mV? ? Temp.:0.1℃
Temp. Compensation	automatic (PT1000/NTC10K) or manual
Accuracy	0.1% of the measuring range or pH: ± 0.02pH, ORP: ±2mV, take the larger one
Stability	0.05% of the measurement range every 24 hours, no accumulation
Repeatability	0.1% better than measuring range
Display Screen	3.2 inch LCD screen
System Language	English
Calibration Method	pH: 3 points; ORP: 2 ponits, the calibration points can be set
Power Protection	The setting data is permanently retained, when the meter is powered off.
Password	Six-digit passcode setting
Relay Output	2 configurable SPST relays,max. load 3A/250VAC,setting objects: high/low alarm, temperature or wash control
Current Output	Two 0/4~20mA can be set with an active current loop, load 1000 ohm, and support long-term calibration
Digital Output	A two-wire RS485 interface, support Modbus protocol and Json
Protection Grade	IP66
Working Temperature	0~60°C, relative humidity less than 95%RH (no condensation)
Storage Temperature	-20~70°C, relative humidity less than 95%RH (no condensation)
Dimension	144144120mm
Material	enhanced ABS
Installation Method	panel, wall, pipe installation, hole size:138*138mm
Electrical Interface	3 M12*1.5 gland heads, wire diameter 3~6.5mm
Power Supply	AC：100～240VAC, 50~60Hz；DC：18~36VDC
Power Consumption	3W

FAQ

1. Can your ORP pH meter realize dosing control?

A: Of course. The APX2-C3A controllers have two SPST relays. The setting objects include: alarms for high and low values of PH/OPR, alarms for high and low values of water sample temperature, and can also be set as a cleaning cycle for the sensor.

2. Does your controller have temperature compensation function?

A: The digital pH meter made by Daruifuno can not only compensate the temperature of the test sample by connecting the temperature sensor, but also self-check the working temperature of the instrument in real time. When the working temperature of the instrument changes, the instrument will compensate the hardware changes caused by temperature drift accordingly, making the detection result more accurate. This is a patented technology.

3. Can your instrument achieve signal output?

A: The APX2-C3A PH meter has a two-wire RS485 interface, the communication protocol is standard MODBUS RTU. It also has two 4-20mA current output.
