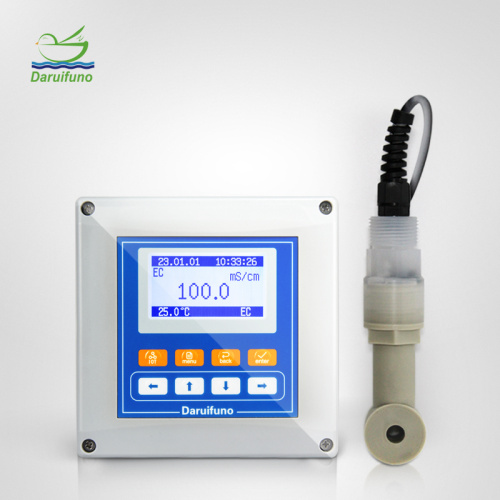

Online / Inline Inductive Conductivity Analyzer

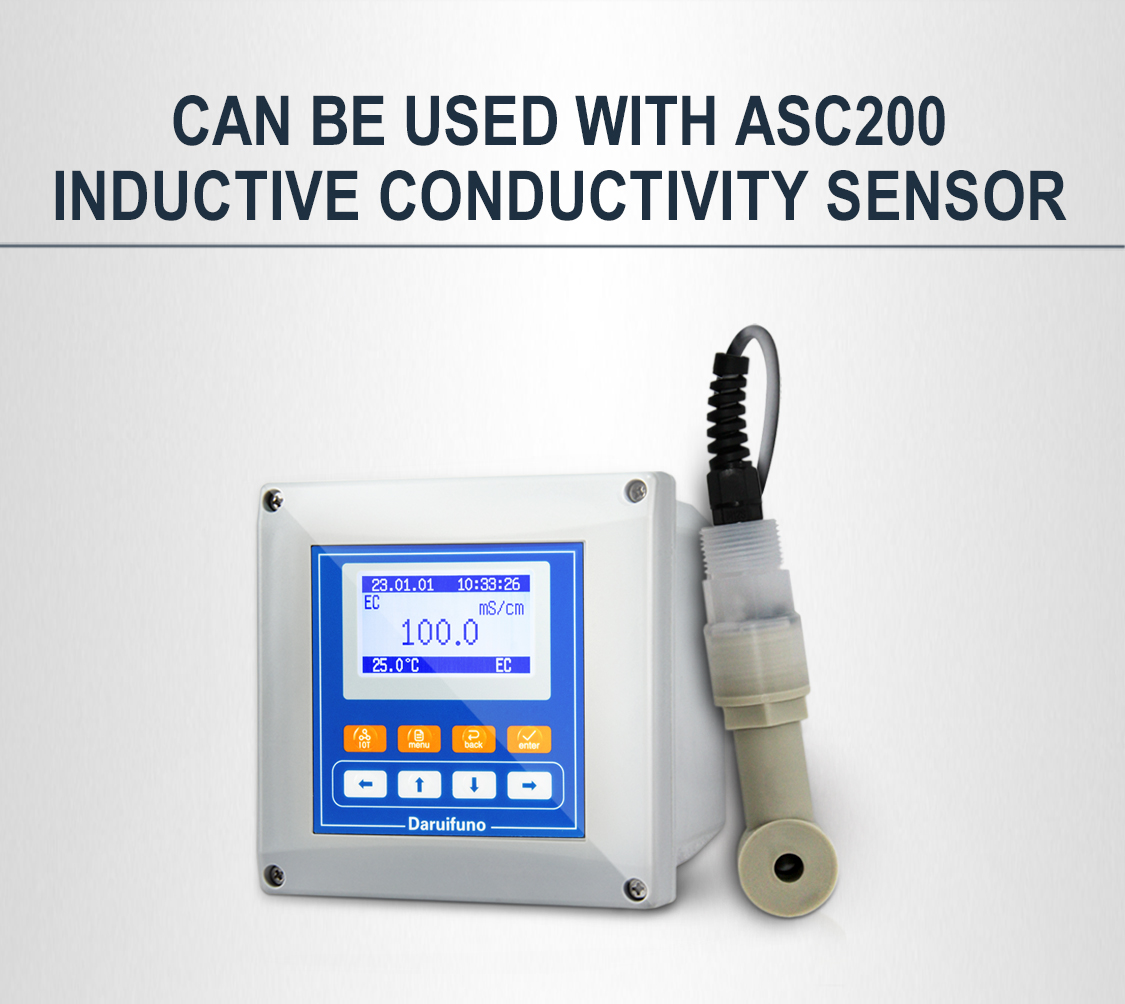

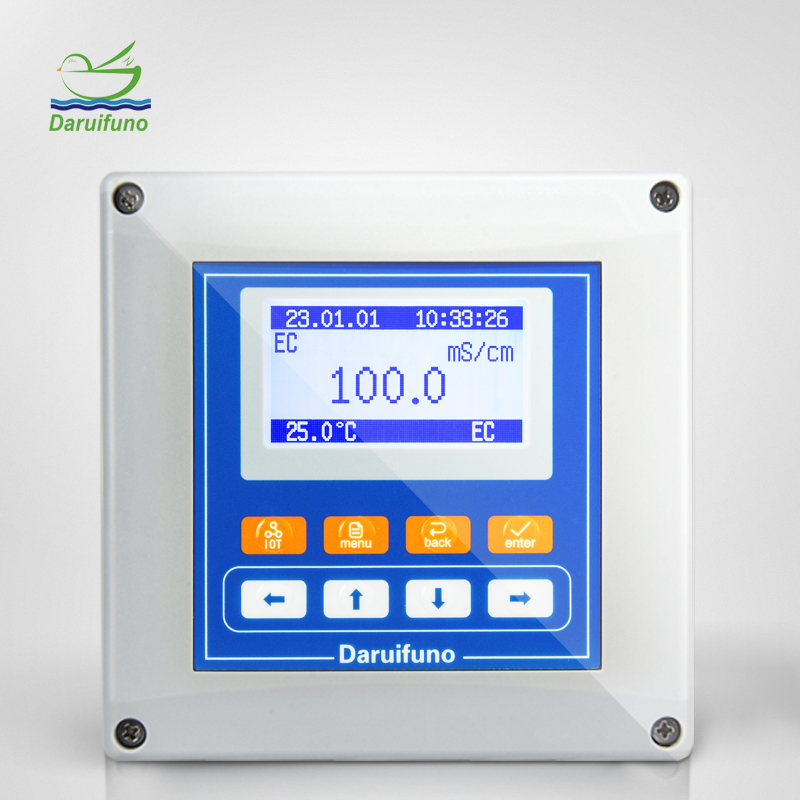

The inductive conductivity analyzer is mainly composed of a Conductivity Controller and an Inductive Conductivity Sensor, which can accurately monitor the conductivity in water online. The AEC2-R4 online inductive conductivity controller, developed and produced by Daruifuno, is a state-of-the-art solution for measuring conductivity in various industrial applications. It seamlessly integrates with the ASC200 inductive Conductivity Sensor, utilizing electromagnetic induction to calculate conductivity by measuring changes in electric field strength. This innovative approach distinguishes it from traditional contact-type conductivity analyzers, which rely on direct electrode contact with the liquid.

With a wide measurement range of 0~2000mS/cm, the AEC2-R4 inductive conductivity analyzer not only measures conductivity values but also supports the calculation and display of resistivity, TDS, salinity, and acid-base concentration values. This versatility caters to the diverse data reading needs of our customers.

The analyzer is equipped with 2 channels of 4-20mA current output for conductivity, temperature, resistivity, TDS, or salinity values. Additionally, it features a two-wire RS485 interface that supports the Modbus communication protocol, allowing users to select their preferred data output method.

Features

• Capacity to input 10 sets of conductivity and corresponding concentration percentage data for linear correspondence-based concentration measurement.
• Includes 2 SPST relays and two 4-20mA current outputs.
• Time and history records with the ability to store up to 10,000 points of historical data.
• Supports various installation methods, including panel, wall-mounted, and pipe installations.
• Wide voltage power supply compatibility with both AC and DC options.

Product Parameters Table

Inductive Conductivity Analyzer Applications:

• Chemical industry: sulfuric acid, fuming sulfuric acid, chlor-alkali plants, sodium chloride, sodium hydroxide, hydrochloric acid, descaling agents, wastewater, moisture detection in hydrofluoric acid, scrubbers.
• Food industry: alkaline water concentration, sugar carbonation, equipment cleaning, soaking control, stove control, food desalination, cheese fermentation, milk powder evaporation, glucose production, fruit and vegetable alkali peeling, washing water, wastewater, pickle processing.
• Metal mining industry: alkali/aluminum ratio control, plating solution monitoring, alkali metal cleaning and processing, copper flotation, heavy metal recovery.
• Textile industry: water quality monitoring, purification pool, rinsing water, carbonization pool, alkalinization pool, boiler water supply system, pickling process.
• Pulp and paper industry: bleaching solution, cooking solution, weak washing solution, brown cleaning, steam generation, heat exchange, wastewater.
• Water treatment industry: ion exchange, regeneration monitoring, reverse osmosis, scrubber, softener regeneration.

About Daruifuno

Delfino company, under the brand Daruifuno, focuses on the R&D and production of water quality analysis instruments. Our measurement parameters encompass pH, ORP, conductivity, TDS, salinity, dissolved oxygen, COD, ammonia nitrogen, turbidity, chlorophyll, blue-green algae, residual chlorine, and chlorine dioxide. Our product portfolio includes PH ORP Analyzer, conductivity analyzer, Turbidity Analyzer, COD Analyzer, Dissolved Oxygen Analyzer, ammonium analyzer, chlorine analyzer, and more. Besides the inductive conductivity analyzer & meter, we also provide matching toroidal conductivity electrodes and analyzers suitable for precise measurements in the low conductivity range.
