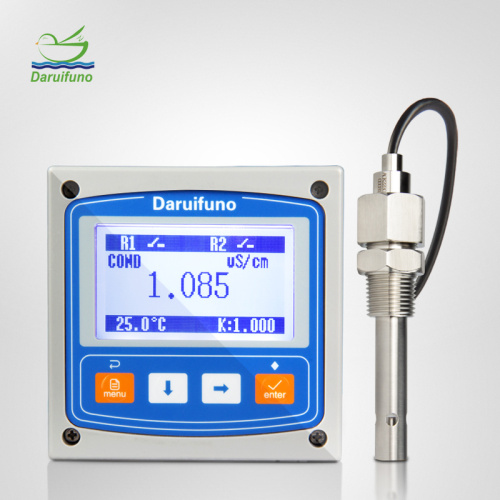

Online TDS/resistivity/salinity conductivity Transmitter

The online conductivity analyzer is a tool used for water quality analysis. It is mainly used to measure the conductivity in the water body to obtain information such as total dissolved oxygen solids (TDS) and salinity in the water body. Daruifuno AEC1-T1 online Conductivity Controller is an automated electronic testing equipment that is accurate and reliable and is widely used in water treatment fields and laboratory environments. Conductivity represents the conductivity of water and is the reciprocal of resistance. It is usually used to express the purity of water. Conductivity is the ability of an object to conduct electrical current. In the International System of Units, the unit of conductivity is Siemens/meter, and other units are: μS/cm, mS/cm, s/cm. The greater the conductivity, the stronger the electrical conductivity. Online conductivity analyzers are widely used in water treatment fields and laboratory environments. They quickly and accurately measure indicators such as conductivity, total dissolved solids and salinity in water. The advantage compared to other traditional chemical analysis methods is that they have real-time online measurement capabilities, which means that the online conductivity analyzer is able to continuously measure when needed, rather than only taking measurements during manual sampling.

?

Features
2 channels of 0/4-20mA current output can output not only conductivity values but also resistivity, TDS, salinity and temperature values;
2 settable SPST relays can set high and low alarms to control dosing;
3.2-inch LCD display, rich data display, switchable conductivity, TDS, salinity and resistivity values;
Automatic or manual setting of temperature compensation;
AC or DC power supply is optional, both are wide voltage power supplies.

?

Different applications require different levels of water purity. For example, the conductivity of drinking water is typically less than 1 mS/cm. At the same time, the semiconductor and pharmaceutical industries require extremely pure water with even lower conductivity values than drinking water. The conductivity of pure water used in such applications is typically less than 1 μS/cm. The AEC1-T conductivity controller can be used with conductivity electrodes with different K constants to monitor water quality in different conductivity ranges. The following are several common water conductivity ranges:
Ultrapure water 0.05μS/cm, deionized water 0.05~1μS/cm, reverse osmosis water 0.05~200μS/cm
Drinking water 200~800μS/cm, fresh water 0~1mS/cm, salt water 1~46mS/cm, seawater 46~72mS/cm

Conductivity controllers are widely used in thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food and tap water industries. The controller mainly continuously monitors the conductivity/total dissolved solids/resistivity and temperature in the solution. Delfino focuses on the R&D and production of water quality analysis instruments. Our measurement parameters include pH, ORP, conductivity, TDS, salinity, dissolved oxygen, COD, ammonia nitrogen, turbidity, chlorophyll, blue-green algae, residual chlorine, and chlorine dioxide. wait. In addition to ORP sensors, our main products include pH ORP analyzer, conductivity analyzer, turbidity analyzer, COD analyzer, dissolved oxygen analyzer, ammonium analyzer, chlorine analyzer, etc.
