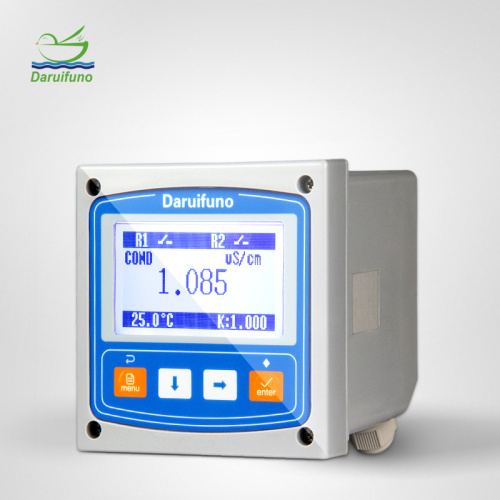

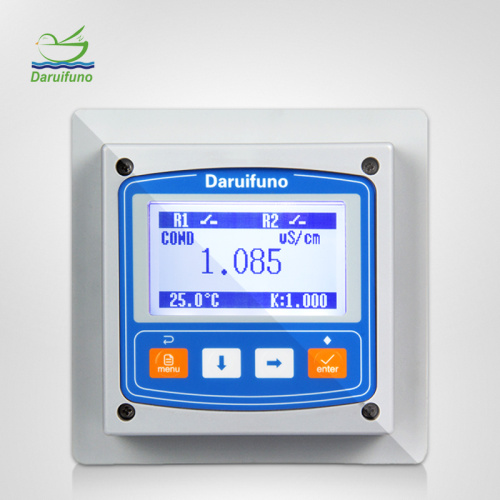

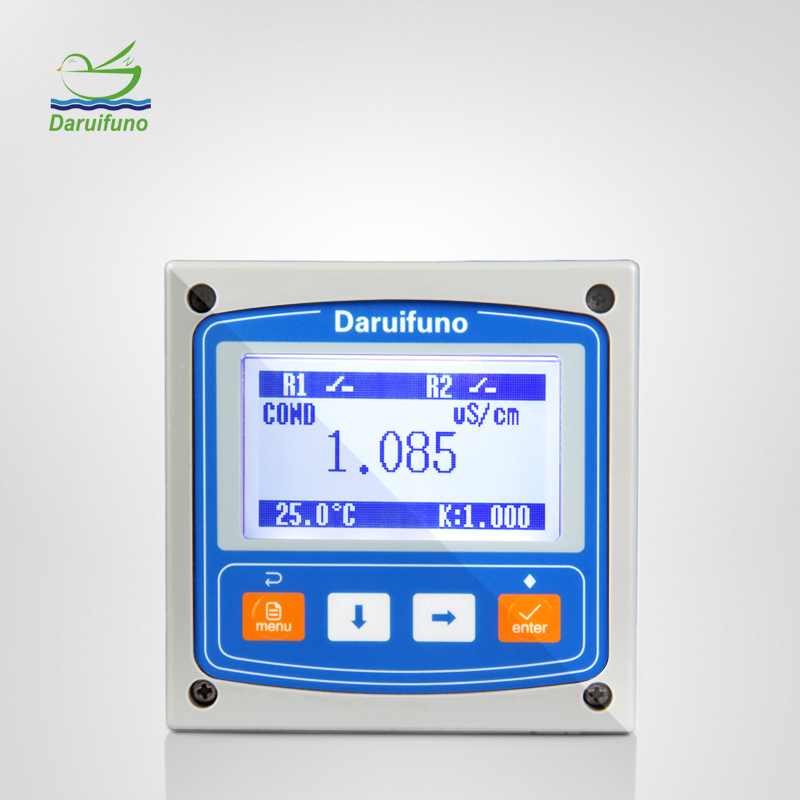

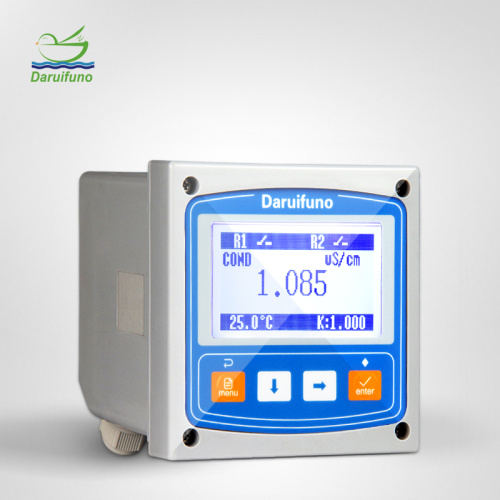

Online / Inline Water Conductivity Controller

Online / Inline Water Conductivity Controller

Get Latest Price

Measuring range	0.00~20.00 mS/cm
option	AC: 100~240V DC: 18~36V
Contact Now

Model No.: AEC1-T2

Brand: Daruifuno

Certification: ISO9001

Current: 0/4~20mA

Communication: RS485 Modbus RTU

Support Customization: Oem

Place Of Origin: China

Product Name: conductivity meter

Resolution: 0.001μS/cm

Relays: Two relays

Dimension: 100*100*120mm

Description

Product Description

Introduction

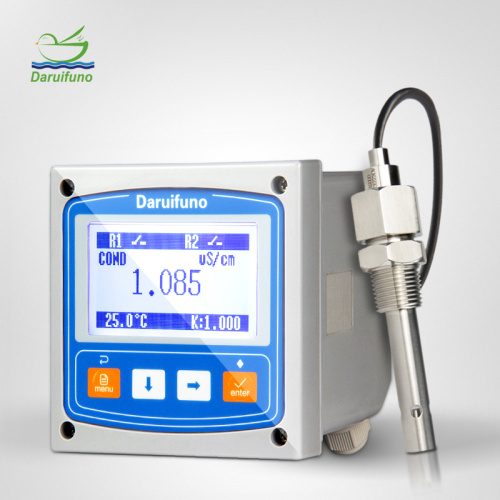

Looking for a reliable Online Water Conductivity Controller? Daruifuno offers a state-of-the-art solution designed for precise inline monitoring of water conductivity. Our AEC2-R4 model, paired with the ASC200 Inductive Conductivity Sensor, provides accurate and dependable readings across a wide range of conductivity values.

Key Features：

Wide Measurement Range: Compatible with conductivity range of 0~2000mS/cm.
Multi-Parameter Display: Calculates and displays resistivity, TDS, salinity, and acid-base concentration values.
Flexible Output Options: 2 channels of 4-20mA current for conductivity, temperature, resistivity, TDS, or salinity outputs. RS485 interface with Modbus communication protocol.
Easy Installation: Supports panel, wall-mounted, and pipe installation methods.
Historical Data Logging: Records up to 10,000 points of historical data for comprehensive analysis.
Customizable Linearity: Input 10 sets of conductivity and corresponding concentration percentage data for customized measurement.

Applications:

Our Online Water Conductivity Controller is suitable for a variety of industries including:

Water Treatment: Ion exchange, regeneration monitoring, reverse osmosis, scrubber, softener regeneration.
Chemical Industry: Sulfuric acid, chlor-alkali plants, sodium chloride, hydrochloric acid, waste water treatment.
Food Industry: Alkaline water concentration, sugar carbonation, food desalination, cheese fermentation.
Metal Mining: Alkali/aluminum ratio control, plating solution monitoring.
Textile Industry: Water quality monitoring, purification pools, rinsing water.
Pulp & Paper: Bleaching solution, cooking solution, wastewater treatment.

Technical Specifications:

Product Name	Conductivity controller
Display Rang(conductivity)	0.00~20.00 mS/cm (Full range automatic switching)
Display Range（Resistivity）	0.01Ohm.cm~18MOhm.cm
Display Range（TDS）	0.000mg/L~10g/L
Display Range（Temp）	-10～150℃
Accuracy	1% better than the measuring range
Temperature Compensation	Automatic or manual (NTC10K or PT1000)
Resolution	0.001?S /cm????0.01MOhm.cm???0.01mg/L
Relay Control	2 settable SPST relays with a maximum load of 3A/250VAC
Analog Current Output	2 settable 0/4~20mA active current loop outputs, max load 1000Ohm
Communication	RS485?
Shell Material	Enhanced ABS
Protection Grade	IP66
Dimension	100100120mm
Mounting Method	Panel (hole size 92*92 mm)

Why Choose Daruifuno?

Daruifuno is a leading manufacturer of water quality analysis instruments. Our products include conductivity analyzers, pH/ORP analyzers, turbidity analyzers, and more. We focus on R&D to ensure our instruments meet the highest standards of accuracy and reliability. Our Online Water Conductivity Controller is no exception, offering superior performance and ease of use.
