High Precision Online Glass pH Sensor for Industrial Use

High Precision Online Glass pH Sensor for Industrial Use

Get Latest Price

Measuring range	0~14pH
option	Anti-twist cap PG13.5
Contact Now

Model No.: ASP100E

Brand: Daruifuno

Certification: ISO9001

Support Customization: Oem

Place Of Origin: China

Indicating Electrode: Blue low-resistance hemispherical glass film

Reference System: Ag/AgCl reference electrode, double salt bridge, KCL gel

Temperature Unit: No temperature/PT1000/NTC10K/PT100

Electrode Material: Glass+annular ceramic hole / Glass + dotted ceramic holes

Zero(E0)pH: ±0.25 pH

Slope(SLOP)%: ＞95%

Flow Rate: 0.5m/s≥flow rate≥0.001m/s

Working Pressure: 0~4bar

Working Temperature: 0~80℃ continuously work, 80~100℃ intermittent use

Thread Size: PG13.5 mounting thread or?Anti-twist cap

Description

Product Description

The ASP100 Series Glass PH Electrode is a water quality sensor designed for measuring pH in industrial and water treatment applications. Featuring a robust glass shell and a high-quality, blue low-resistance hemispherical glass membrane, this electrode boasts a fast response time and long service life. The ring-shaped ceramic liquid interface ensures quick response and ease of cleaning, preventing clogging. With options for temperature compensation and customizable wire lengths (default 5 meters), the ASP100 series offers flexibility to suit various monitoring needs. Suitable for pure water, sewage, surface water, and laboratory wastewater, this sensor is ideal for continuous water quality monitoring.?

For this glass electrode, we can provide PTFE sheath and various Installation Accessories: submersible, telescopic bracket, side wall installation accessories, flow cell, etc.

Features

The circular large-area ceramic contact surface is not easy to be blocked
The porous ceramic sand core, good stability of the liquid interface
The pH sensor uses a hemispherical glass membrane, high in strength and not easy to break
The ORP sensor?adopts the circular platinum electrode, has a large area and fast response

Application:

ASP100E: Fast response time, for sewage, agricultural sewage, industrial wastewater

ASP101E: Long service life, for drinking water, surface water, recycled water, rainwater

Specification：

Model	ASP100E	ASP101E
Measuring Range	0~14pH	0~14pH
Indicator Electrode	hemispherical membrane	hemispherical membrane
Reference System	Ag/AgCl, double salt bridge, KCl gel	Ag/AgCl, double salt bridge, KCl gel
Electrode Material	glass+annular ceramic hole	glass+porous ceramic sand core
Temp.&Pressure	0~80℃@6Bar	0~80℃@6Bar
Sample Flow Rate	0.001m/s~0.5m/s	0.001m/s~0.5m/s
Zero Position	±0.25pH@25℃	±0.25pH@25℃
Slope%	＞95%@25℃	＞95%@25℃
Temperature Unit	PT1000, NTC10K, PT100, etc. (custom)	PT1000, NTC10K, PT100, etc. (custom)
Electrode Dimension	Diameter: 12mm, Length: 120mm	Diameter: 12mm, Length: 120mm
Mounting Thread	no thread or PG13.5	no thread or PG13.5
Lead Type	integrated or separate FS8, FVP, etc.	integrated or separate FS8, FVP, etc.

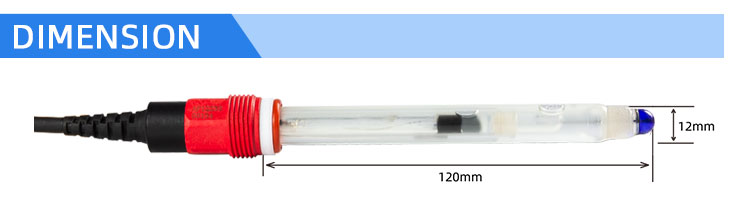

Glass pH electrode dimension

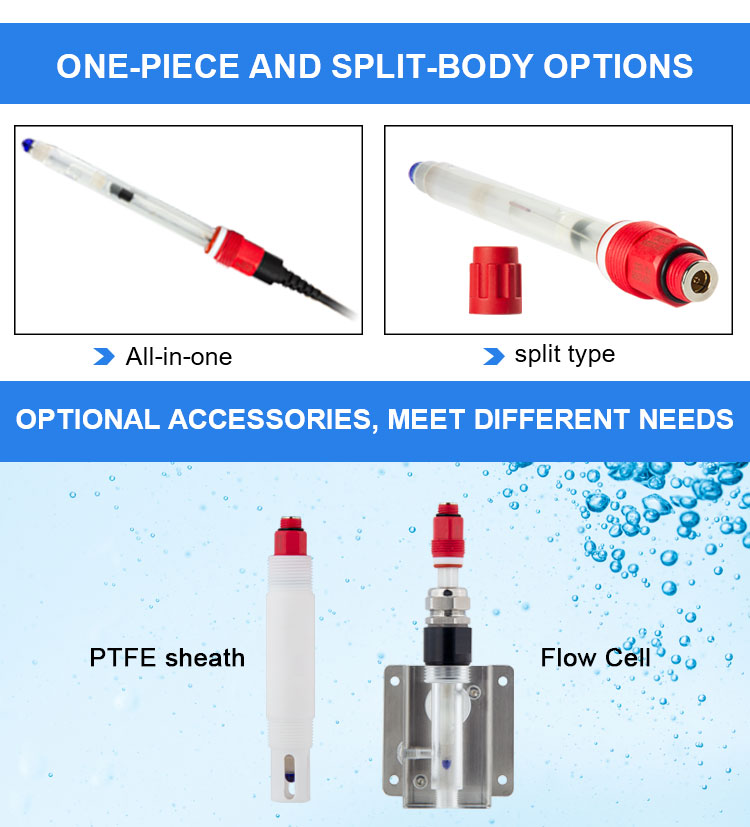

Glass pH Electrode Style

As a supplier and manufacturer of glass pH electrodes, Daruifuno is a trusted partner in water quality analysis. We are committed to excellence and innovation, providing cutting-edge solutions that meet the ever-changing needs of our customers. If you are looking for glass pH electrodes with reliable quality, diverse functions and favorable price, Daruifuno's pH electrodes are your best choice. Our products are designed to provide precise and reliable results, allowing you to make informed decisions about water quality management. Contact us today to learn more about our products and find out how we can support you in achieving precise and reliable water quality monitoring.
