High Temperature Types Of PH Sensors for Papermaking Effluent

Features of Our High Temperature Types Of PH Sensors

• Customized reference filling design, high temperature resistance, suitable for industries containing heavy metals, organics, high chlorine, ammonia, chemicals, etc.

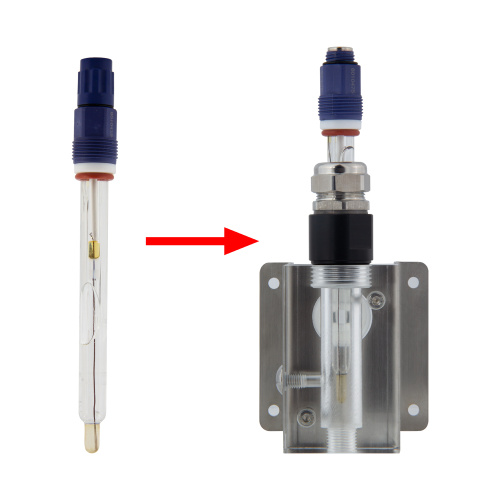

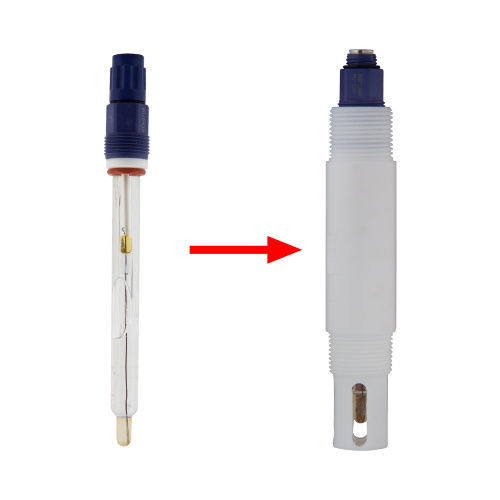

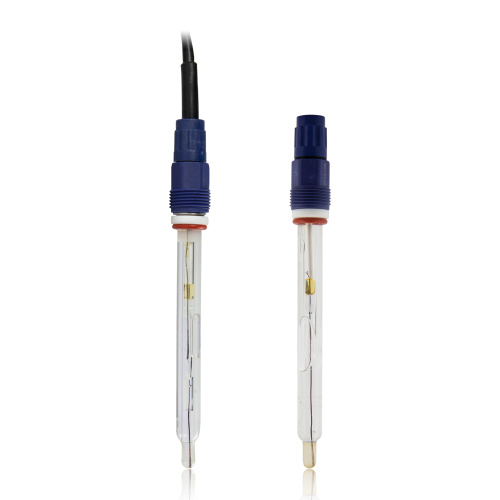

• Glass shell, standard 12mm diameter, 120mm length, PG13.5 mounting thread at the end.

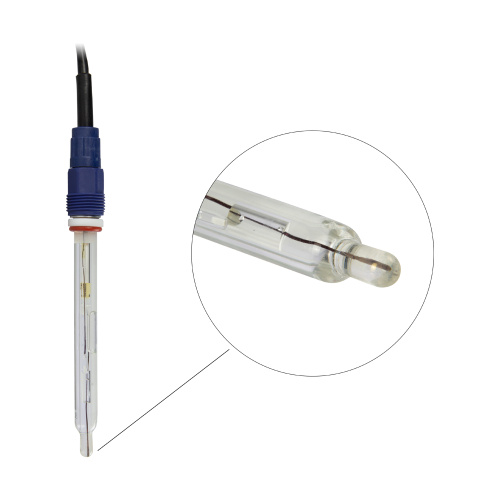

• The pH electrode adopts a low-resistance cylindrical glass membrane, which has a large sensing area, fast response, and high strength, making it ideal for Papermaking Effluent PH Sensors applications.
• Reference adopts ceramic hole sand core, which is not easy to block, and double salt bridge design system.

Specification for High Temperature PH Sensors

Online Monitoring Steps for Papermaking Effluent Using High Temperature PH Sensors

1. Install monitoring equipment: Choose reliable High Temperature Types Of PH Sensors to monitor the pH value, turbidity value, dissolved oxygen value, conductivity value, etc. of wastewater in real time.
2. Design monitoring points: Set monitoring points according to the location and characteristics of the wastewater discharge outlet. Monitoring points should usually be set up near the wastewater discharge outlet to ensure the accuracy and representativeness of monitoring data for Papermaking Effluent PH Sensors.
3. Connect the monitoring equipment: Connect the High Temperature Types Of PH Sensors to the wastewater discharge port to ensure that the wastewater flows through the monitoring equipment and obtain real-time wastewater monitoring data.
4. Data collection and transmission: Process and store the data collected by the monitoring equipment, and transmit it to the central control system through RS485 and other methods.

?
