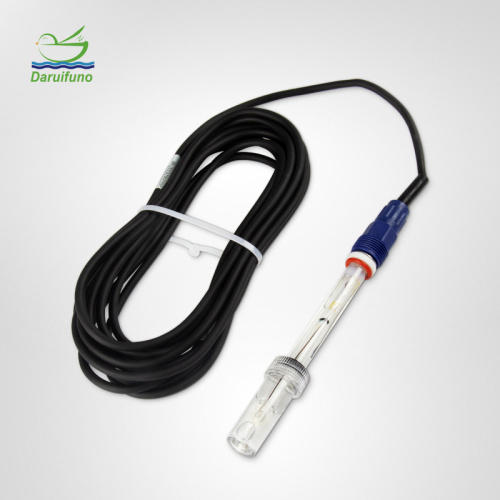

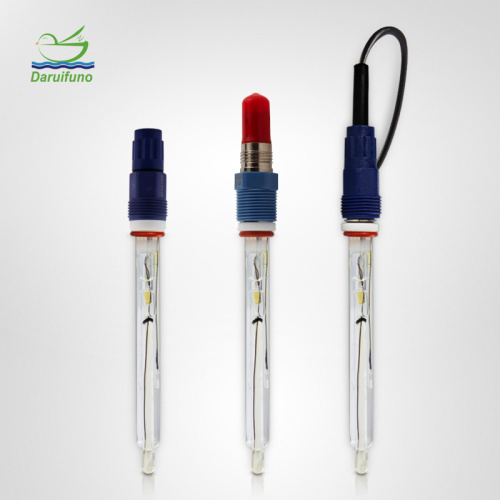

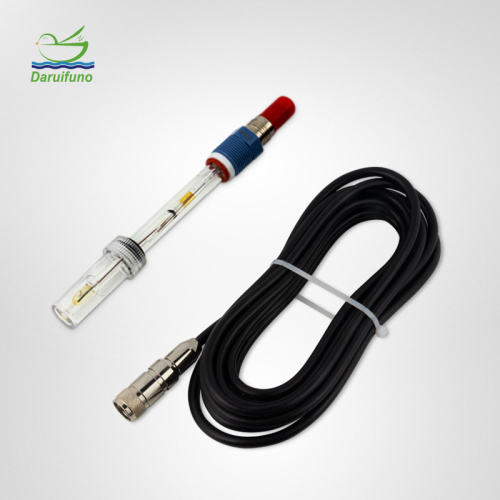

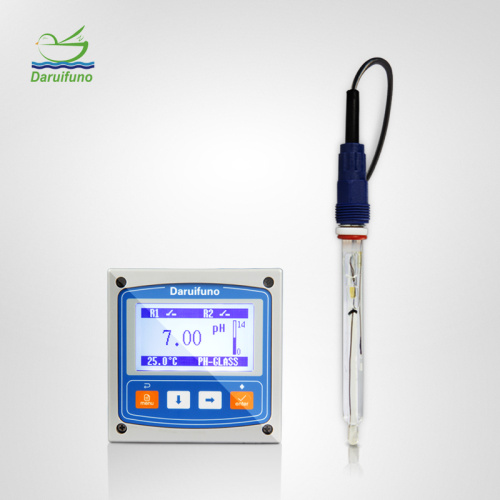

Daruifuno's ASP121E analog PH Sensor employs a unique glass membrane electrode that is designed to interface directly with the solution being measured. This specific configuration enables the electrode to deliver exceptionally stable and precise pH readings, even in the challenging environment of pure water. The glass membrane electrode functions by responding to the hydrogen ion concentration in the solution, which in turn allows the sensor to accurately determine the pH level. The use of this specialized electrode technology makes the ASP121E a reliable and accurate tool for a wide range of pH measurement applications.?This pure water dedicated pH analog sensor is widely used in pure water manufacturing process detection, such as the electronics and semiconductor industries.
?
?
| Product Name | Analog PH Sensor |
| Product Model | ASP121E |
| Measuring Range | 0~14pH |
| Indicator Electrode | Low impedance cylindrical glass membrane |
| Working Pressure | Medium and low temp environment: max. 0~6bar |
| High temp environment: 0~3bar | |
| Operating Temperature | 0~80℃, continuously working |
| 80~100℃, continuously working＜60 mins | |
| Materials | Glass + dotted ceramic holes |
| Reference System | Ag/AgCl reference electrode, double salt bridge, KCl gel |
| Temperature Unit | PT100, PT1000, NTC10K customized |
| Dimensions | Diameter 12mm / Length120mm (customized) |
| Installation Dimensions | PG13.5 |
| Zero (E0) | ±0.25 pH |
| Slope (SLOP)% | >95% |
| Tail Lead | Integral or split, FVP connector |
?
In many industries such as pharmaceuticals, food and beverages, semiconductors, and electronics factories, water purity is an important indicator. Pure water needs to be used during the production process, and the pH value of pure water must be monitored continuously in real time.
