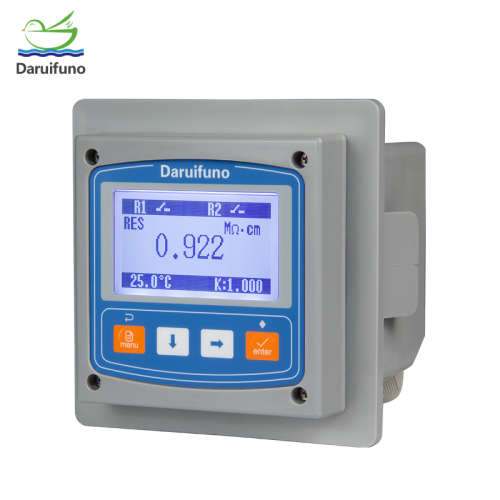

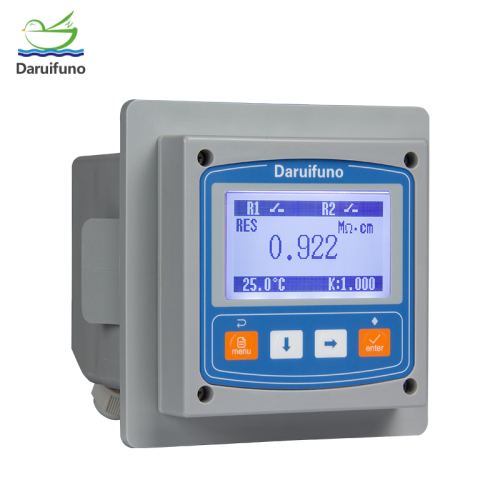

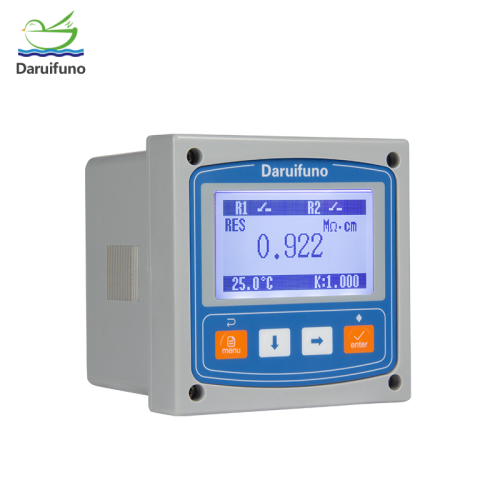

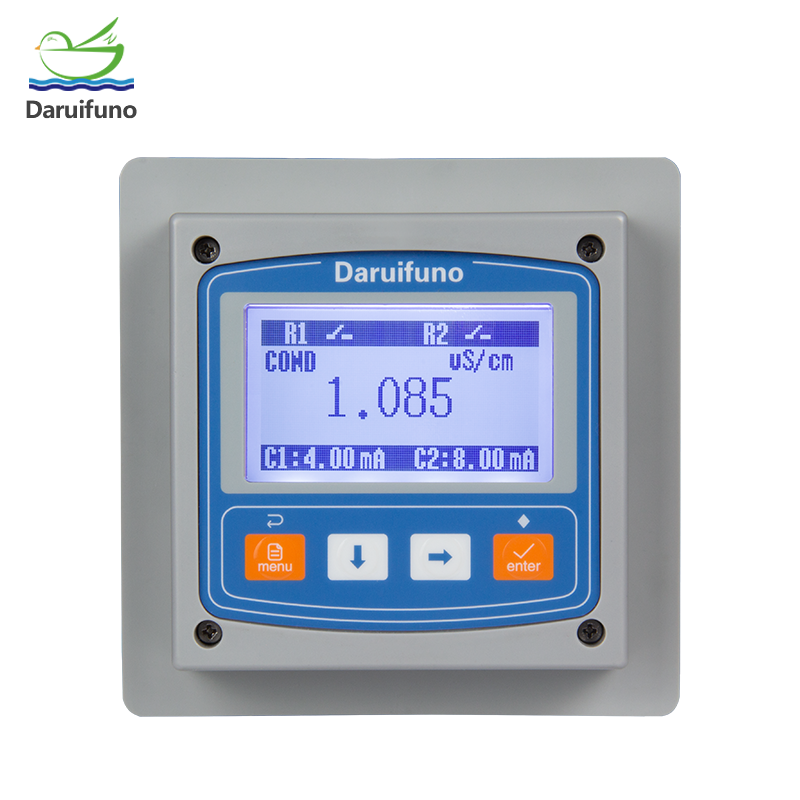

Because water contains various dissolved salts, and exists in the form of ions. When a pair of electrodes are inserted into the water, after electrification, under the action of the electric field, the charged ions will move in a certain direction. The anions in the water move to the anode, making the aqueous solution conduct electricity, and the degree of the conductivity of the water is called the conductivity. Conductivity is the reciprocal of resistivity, which reflects the amount of salt in water and is an important indicator of water quality. It reflects the level of electrolytes present in the water. Depending on the concentration of the electrolyte in the aqueous solution, the degree of conductivity of the solution is also different. The solubility of an electrolyte in a solution is analyzed by measuring the conductivity of the solution. This is the basic analysis method of the conductivity meter. In the International System of Units, the unit of conductivity is called Siemens/meter (S/m), and other units include ms/m, us/cm, etc. The AEC1-T1 Conductivity Controller can be connected with analog Conductivity Sensor to measure water conductivity value. The advantages of the conductivity meter is that it can also display resistivity, salinity and TDS values.?
Features
Specification
| Product Name | Conductivity controller |
| Product Model | AEC1-T2 |
| Display Rang(conductivity) | 0.00~20.00 mS/cm (Full range automatic switching) |
| Display Range（Resistivity） | 0.01Ω.cm~18MΩ.cm |
| Display Range（TDS） | 0.000mg/L~10g/L |
| Display Range（Salinity） | 15ppt |
| Display Range（Temp） | -10～150℃ |
| Accuracy | 1% better than the measuring range |
| Temperature Compensation | Automatic or manual (NTC10K or PT1000) |
| Resolution | 0.001?S /cm? ? 0.01MΩ.cm? ?0.01mg/L? 0.01%? ?0.1℃/ 0.1℉ |
| Relay Control | 2 settable SPST relays with a maximum load of 3A/250VAC |
| Analog Current Output | 2 settable 0/4~20mA active current loop outputs, max load 1000Ω |
| Communication Method | RS485 interface; MODBUS RTU |
| Display Screen | 128*64 LCD, adjustable backlight mode, adjustable display rate |
| Configuration Information | Power off protection, parameters are retained indefinitely |
| Operating Temperature | 0～60℃，RH<95% ( no condensation) |
| Storage Temperature | -20～70℃, RH<55% ( no condensation, precision instruments) |
| Shell Material | Enhanced ABS |
| Protection Grade | IP66 |
| Dimension | 100*100*120mm |
| Mounting Method | Panel (hole size 92*92 mm) |
| Power Supply | 100~240V AC 50/60Hz? or 18~36V DC |
| Power Consumption | 3W |

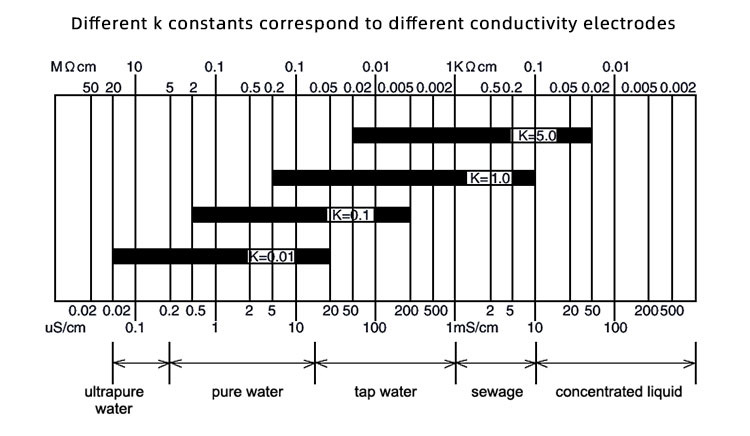

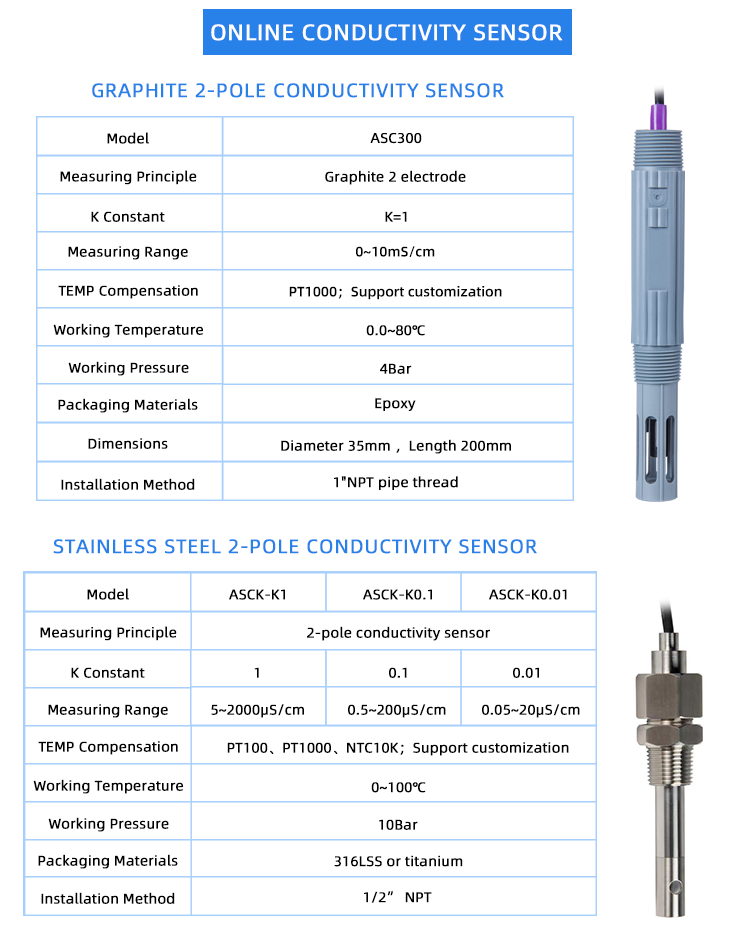

The conductivity controller can be connect to different conductivity sensors with different K constant. The conductivity sensor can measure the water conductivity values, and the controller can display the resistivity, TDS, salinity values. Our company also has online pH meters and dissolved oxygen analyzer, turbidity analyzer, COD analyzer and ammonia analyzer. If you have any requirements of the watre quality analysis instruments, please contact us!
